Pfannenberg

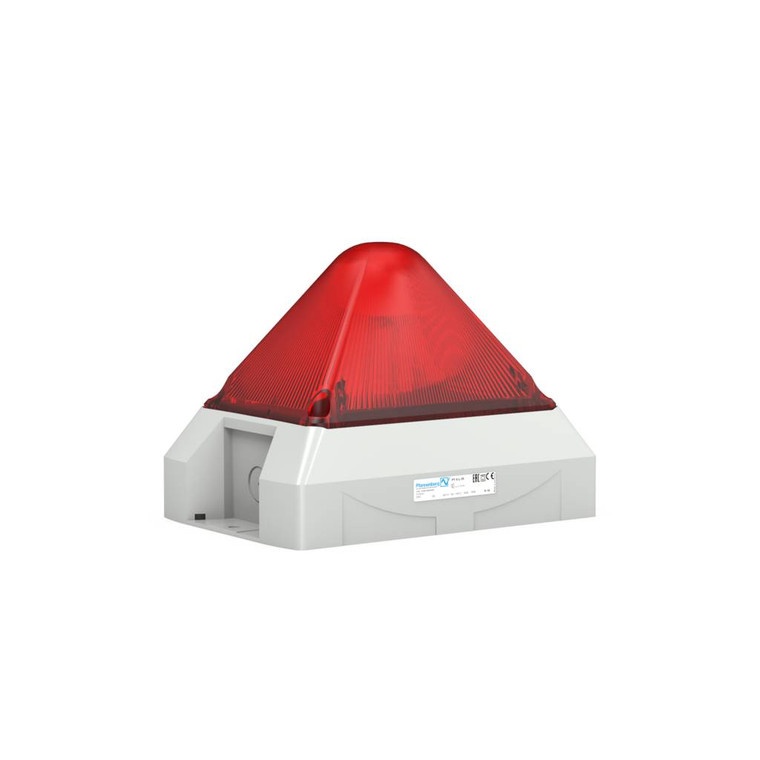

Pfannenberg Py X-L-15 24V Flashing Light 15J Adj Fl 24Vdc,18-30Vac Gry Hs Rd Lens

(No reviews yet) Write a Review
SKU:
21561805055
Condition:
New
MOUNTING STYLE:
Surface or Flush
BASE COLOR:
RAL 7035 (Lt. Grey)
LENS COLOR:
Red
MATERIAL:
Polycarbonate/ABS blend housing
ENVIRONMENTAL PROTECTION STANDARD:
Type 4/4X, IP 66
OPERATING VOLTAGE RANGE:
24 VDC, 18-30 VAC
BULB TYPE:
Xenon
FLASH ENERGY:
15 J
FLASH Rate:
1 Hz = 60 flashes/min, .75 Hz = 45 flashes/min, .5 Hz = 30 flashes/min, .1 Hz = 6 flashes/min
LIGHT INTENSITY (DIN 5037):
190 cd
FLASH RATE:
Adjustable
MAX VIEWING DISTANCE:
320 m
SERVICE LIFE OF LIGHT SOURCE:
Light emission still 70% after 800,000,000 flashes
APPROVALS:
UL, cUL, CE, VdS, EN 54-23
WEIGHT (lbs):
0.96976
Width (in):
8.4
Height (in):
6.2
Depth (in):
5.67
MINIMUM OPERATING TEMPERATURE (??C):
-40
MAXIMUM OPERATING TEMPERATURE ( ??C):
55
  • Pfannenberg Py X-L-15 24V Flashing Light 15J Adj Fl 24Vdc,18-30Vac Gry Hs Rd Lens
  • Pfannenberg Py X-L-15 24V Flashing Light 15J Adj Fl 24Vdc,18-30Vac Gry Hs Rd Lens
$460.17

Description

PY X-L-15 24V Flashing light 15J adj fl 24VDC,18-30VAC GRY hs RD lens

Exclusive Pfannenberg xenon flash technology
Reaches a 15 Joules Flash with with adjustable flash rate
Adjustable flash rate: 0.1, 0.5, 0.75, and 1.0 Hz
Selectable flash frequency and synchronized flash
Option: control input to activate flash, direct control via PLC
8,000,000 flash service life
Huge visual 3D-Coverage area, more as double as a 10 J flashing light with a 180?? x 360?? visible field
Operates in any climate
Surface or flush-panel mounted
10-Year Warranty
