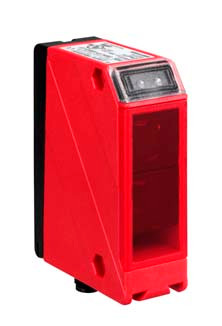

Leuze PRK 96K/P-1360-41 Polarized retro-reflective photoelectric sensor
LeuzeObsolete. See description for replacement options
Obsolete. See description for replacement options
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze PRK 96K/P-1360-41 Polarized retro-reflective photoelectric sensor
Discontinued. Options for replacement are 50127012 or 50025186
Polarized retro-reflective photoelectric sensor. Operating range limit: 0.1 ... 10 m; Light source: LED, Red; Switching frequency: 1,000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Digital switching output 1: Transistor, PNP, Light switching; Digital switching output 2: Transistor, PNP, Dark switching; Connection: Connector, M12, Plastic, 4 -pin; Housing design: Cubic; Dimensions: 30 mm x 90 mm x 70 mm; Housing material: Plastic; Operational controls: 270° potentiometer; Ambient temperature, operation: -40 ... 55 °C; Degree of protection: IP 67
- Series:
- 96
- Operating principle:
- Reflection principle
- Operating range:
- 0.3 ... 8 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0.1 ... 10 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Red
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 50 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light switching
- Switching principle:
- Dark switching
- Switching frequency:
- 1,000 Hz
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Plastic
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 30 mm x 90 mm x 70 mm
- Housing material:
- Plastic
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 150 g
- Note:
- Housing part used contains perfluorobutanesulfonic acid (PFBS)
- Type of display:
- LED
- Operational controls:
- 270° potentiometer
- Ambient temperature, operation:
- -40 ... 55 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270902
- ECLASS 8.0:
- 27270902
- ECLASS 9.0:
- 27270902
- ECLASS 10.0:
- 27270902
- ECLASS 11.0:
- 27270902
- ECLASS 12.0:
- 27270902
- ECLASS 13.0:
- 27270902
- ECLASS 14.0:
- 27270902
- ECLASS 15.0:
- 27270902
- ETIM 5.0:
- EC002717
- ETIM 6.0:
- EC002717
- ETIM 7.0:
- EC002717
- ETIM 8.0:
- EC002717
- ETIM 9.0:
- EC002717
- ETIM 10.0:
- EC002717
- Datasheet:
- View
- Declaration of Conformity:
- View
