Description

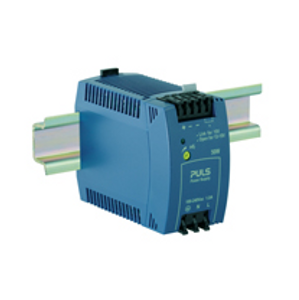

DIN-Rail Power Supplies for 1-phase Systems
24V, 4.2A
- 115 / 230V Auto-select input
- Efficiency up to 90%
- Adjustable to parallel mode for load sharing
- Full output power between -10 and +60°C
- Quick-connect spring-clamp terminals
| Output | 24-28Vdc |
| 4.2-3.6A | |
| 100W | |
| Input | AC 100-120/220-240V (-15%/+10%) |
| DC 290V (-25%/+20%) | |
| Size (WxHxD) | 73 x 75 x 103mm |
| Weight | 360g |
A compact size, light weight, simple mounting on the DIN-rail and the utilization of exclusively quality components are what make the MiniLine power supplies so easy to use and install within seconds. A rugged electrical and mechanical design as well as a high immunity against electrical disturbances on the mains provides reliable output power. This offers superior protection for equipment which is connected to the public mains network or is exposed to a critical industrial environment. The MiniLine series offers output voltages from 5 to 56Vdc and a power rating from 15W to 120W. The specialty of the ML60.242 is the electronic inrush current limitation and the suitability for very low ambient temperatures. The unit is fully specified down to 40°C. The supplementary MiniLine decoupling diode module MLY10.241 allows building of redundant systems or to protect against back-feeding voltages.
