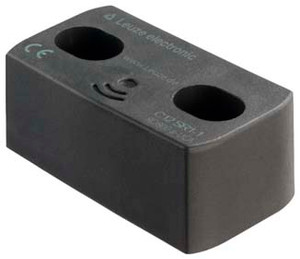

RD800-x-UCA Actuator
- Series:
- RD800
- Application:
- Individual use,Series use
- Code type:
- Unique code
- Suitable for:
- RD800 safety transponder
- Dimension (W x H x L):
- 25 mm x 18 mm x 45 mm
- Housing material:
- Plastic
- Plastic housing:
- PA 66
- Net weight:
- 24 g
- Housing color:
- Anthracite
- Type of fastening:
- Through-hole mounting
- Ambient temperature, operation:
- -25 ... 70 °C
- Ambient temperature, storage:
- -25 ... 80 °C
- Degree of contamination:
- 3, EN 60947-1
- Degree of protection:
- IP 67,IP 69K
- Approvals:
- TÜV Süd,c UL US
- Test procedure for shock in accordance with standard:
- EN 60068-2-27
- Test procedure for vibration in accordance with standard:
- EN 60068-2-6
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27279216
- ECLASS 8.0:
- 27279216
- ECLASS 9.0:
- 27272606
- ECLASS 10.0:
- 27272606
- ECLASS 11.0:
- 27272606
- ECLASS 12.0:
- 27272606
- ECLASS 13.0:
- 27272606
- ECLASS 14.0:
- 27272606
- ECLASS 15.0:
- 27272606
- ETIM 5.0:
- EC002594
- ETIM 6.0:
- EC002594
- ETIM 7.0:
- EC002594
- ETIM 8.0:
- EC001487
- ETIM 9.0:
- EC001487
- ETIM 10.0:
- EC001487
