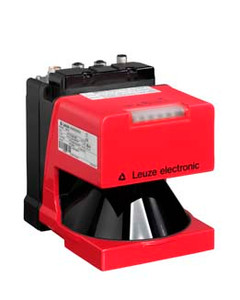

ROD4-58 plus Laser scanner
- Series:
- 4
- Contains:
- RODplussoft configuration software
- Application:
- Contour measurement
- Special version:
- Dust suppression,Heating,Warning output
- Light source:
- Laser, Infrared
- Laser class:
- 1, IEC/EN 60825-1:2014
- Measurement range:
- 0 ... 25,000 mm
- Detection angle:
- 190 °
- Scanning rate:
- 50 scans/s
- Repeatability:
- 20 mm
- Measurement time:
- 20 ms
- Measurement value resolution:
- 5 mm
- Supply voltage UB:
- 24 V, DC, -30 ... 20 %
- Type:
- Ethernet, RS 232, RS 422
- Number of connections:
- 4 Piece(s)
- Function:
- Signal IN,Signal OUT,Voltage supply
- Thread size:
- M16
- No. of pins:
- 14 -pin
- Function:
- Configuration interface,Data interface
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Function:
- Configuration interface
- No. of pins:
- 5 -pin
- Function:
- Data interface
- No. of pins:
- 8 -pin
- Dimension (W x H x L):
- 140 mm x 148 mm x 167 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Lens cover material:
- Plastic
- Net weight:
- 2,300 g
- Ambient temperature, operation:
- -20 ... 50 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270990
- ECLASS 8.0:
- 27270913
- ECLASS 9.0:
- 27270913
- ECLASS 10.0:
- 27270913
- ECLASS 11.0:
- 27270913
- ECLASS 12.0:
- 27270913
- ECLASS 13.0:
- 27270913
- ECLASS 14.0:
- 27270913
- ECLASS 15.0:
- 27270913
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
