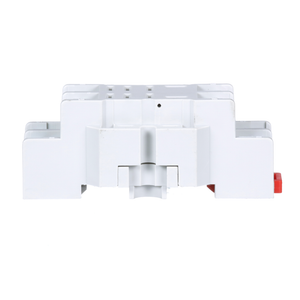

Schneider Electric 8501NR43 Relay Socket 300Vac 10A Type R +Option

(No reviews yet) Write a Review
SKU:
8501NR43
UPC:
785901137290
Condition:
New
Height:
69.6 mm
Warranty:
18 months
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1511021EN
Reach Free Of Svhc:
Yes
Line Rated Current:
10 A 300 V AC
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Certifications:
UL Recognized || CSA || CE
Sustainable Offer Status:
Green Premium product
Quantity Per Set:
1
Depth:
27.7 mm
Range Of Product:
8501N
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection:
double tiered screw clamp terminals
Width:
40.4 mm
Product Or Component Type:
Relay Socket
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Circularity Profile:
N/A
Shape Of Pin:
spade
Toxic Heavy Metal Free:
Yes
Mounting Support:
DIN rail || panel
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Catalog:
View
Datasheet:
View
  • Schneider Electric 8501NR43 Relay Socket 300Vac 10A Type R +Option
  • Schneider Electric 8501NR43 Relay Socket 300Vac 10A Type R +Option
  • Schneider Electric 8501NR43 Relay Socket 300Vac 10A Type R +Option
$35.01

Description

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS43 or 8501RSD43 relay will plug into this relay socket which is designed for 11 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
