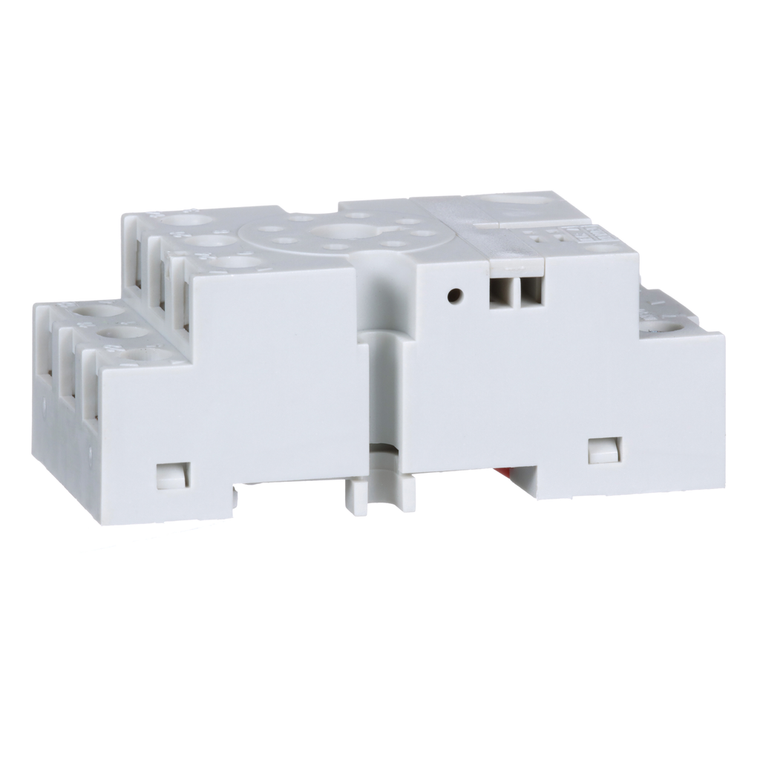

Name: Schneider Electric 8501NR52 Relay Socket 300Vac 10Amp Type K
SKU: 8501NR52
Price: 15.01 USD
Availability: InStock

Schneider Electric 8501NR52 Relay Socket 300Vac 10Amp Type K

(No reviews yet) Write a Review

SKU:

8501NR52

UPC:

785901583851

Condition:

New

Rohs Exemption Information:

Yes

Width:

36 mm

Electrical Connection:

double tiered screw clamp terminals

Warranty:

18 months

Product Or Component Type:

Relay Socket

Mounting Support:

DIN rail || panel

Quantity Per Set:

Toxic Heavy Metal Free:

Yes

Reach Free Of Svhc:

Yes

Product Certifications:

UL Recognized || CSA || CE

Shape Of Pin:

tubular

Range Of Product:

8501N

Height:

77.5 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Mercury Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Line Rated Current:

5 A 600 V AC || 16 A 300 V AC

Environmental Disclosure:

ENVPEP1511021EN

Depth:

36 mm

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

China Rohs Regulation:

Catalog:

View

Datasheet:

View

Description

Description

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
