Schneider Electric 8501RS43P14V20 Relay240Vac15Amptyper+Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

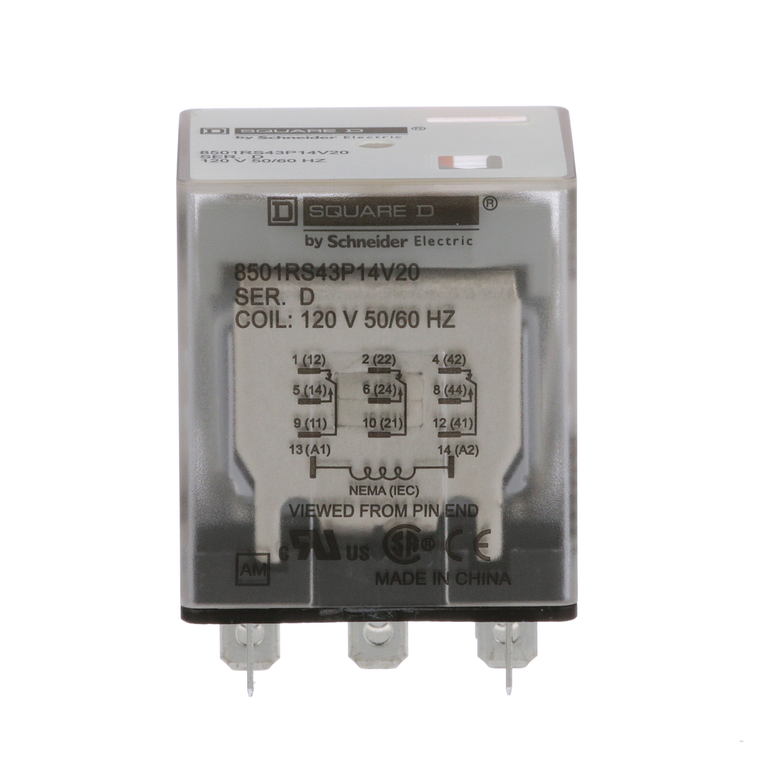

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR43 or 8501NR43B relay socket. Relay is available with 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Depth:
- 41.8 mm
- Range Of Product:
- 8501R
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Relay Type:
- standard
- China Rohs Regulation:
- X
- Shape Of Pin:
- spade
- Ambient Air Temperature For Operation:
- -40-131 °F
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Control Type:
- without test button
- Width:
- 30.6 mm
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
- Mounting Support:
- socket
- Product Compatibility:
- 8501NR43
- Local Signalling:
- green indicator relay energised LED
- Switch Function:
- 3PDT
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Contacts Material:
- silver alloy, gold flashed
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1511008EN
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Product Or Component Type:
- Miniature Relay
- Height:
- 27.3 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Uc] Control Circuit Voltage:
- 120 V AC
- Rohs Exemption Information:
- Yes
- Catalog:
- View
- Datasheet:
- View
