Schneider Electric 8501RSD42V53 Relay240Vac15Amptyper+Options
Schneider Electric
$42.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8501RSD42V53 Relay240Vac15Amptyper+Options

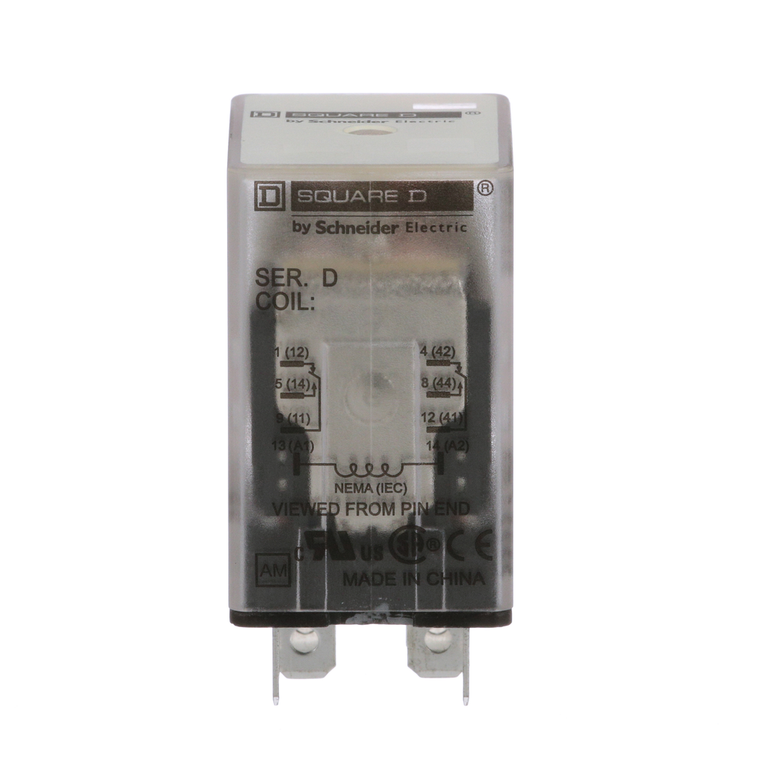

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Height:
- 27.3 mm
- [Uc] Control Circuit Voltage:
- 24 V DC
- Environmental Disclosure:
- ENVPEP1511008EN
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Width:
- 21 mm
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Range Of Product:
- 8501R
- Product Or Component Type:
- Miniature Relay
- Mounting Support:
- socket
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Depth:
- 41.8 mm
- Warranty:
- 18 months
- Relay Type:
- standard
- Local Signalling:
- no indicator
- Shape Of Pin:
- spade
- Contacts Material:
- silver alloy, gold flashed
- Control Type:
- without test button
- Ambient Air Temperature For Operation:
- -40-131 °F
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
- Switch Function:
- DPDT
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- N/A
- Product Compatibility:
- 8501NR42
- Catalog:
- View
- Datasheet:
- View
