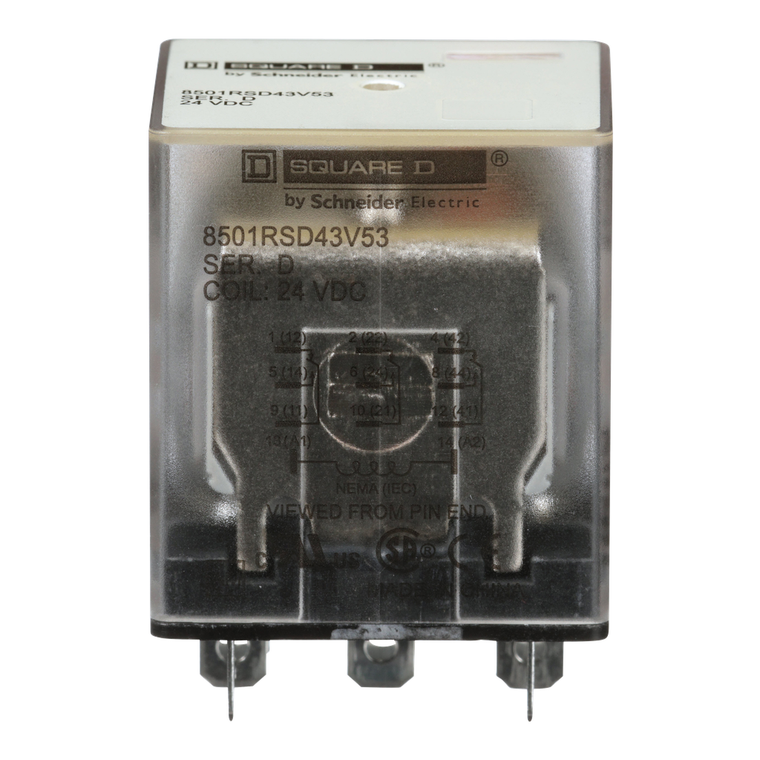

Schneider Electric 8501RSD43V53 Relay250Vac15Amptyper+Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 8501RSD43V53 Relay250Vac15Amptyper+Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8501RSD43V53

UPC:

785901137153

MPN:

Condition:

New

Control Type:

without test button

Warranty:

18 months

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Operating Time:

20 ms - pick-up || 20 ms - drop-out

Depth:

41.8 mm

Product Compatibility:

8501NR43

Width:

30.6 mm

Switch Function:

3PDT

Shape Of Pin:

spade

Local Signalling:

no indicator

Circularity Profile:

N/A

Maximum Switching Voltage:

300 V AC || 30 V DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Rated Power In Hp:

0.5 120 V AC || 1 277 V AC

Ambient Air Temperature For Operation:

-40-131 °F

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP1511008EN

[Uc] Control Circuit Voltage:

24 V DC

Rated Breaking Capacity:

3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508

Product Or Component Type:

Miniature Relay

Mounting Support:

socket

Product Certifications:

UL Listed || UL Recognized || CSA || CE

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Relay Type:

standard

Reach Free Of Svhc:

Yes

Height:

27.3 mm

Contacts Material:

silver alloy, gold flashed

Range Of Product:

8501R
