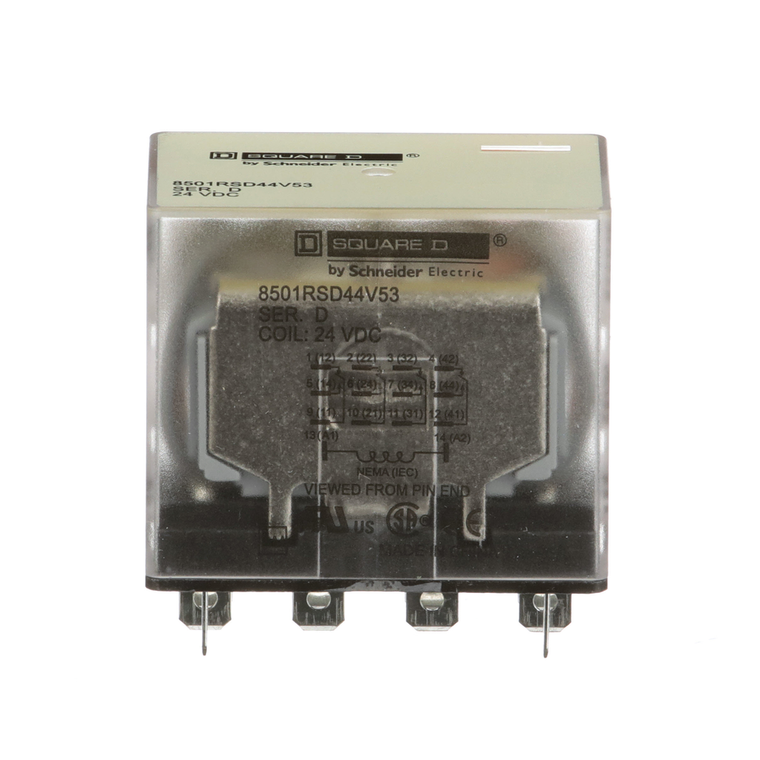

Schneider Electric 8501RSD44V53 Relay250Vac15Amptyper+Options
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Switch Function:
- 4PDT
- Contacts Material:
- silver alloy, gold flashed
- [Uc] Control Circuit Voltage:
- 24 V DC
- Depth:
- 41.8 mm
- Width:
- 40.6 mm
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Rohs Exemption Information:
- Yes
- Shape Of Pin:
- spade
- Ambient Air Temperature For Operation:
- -40-131 °F
- Product Compatibility:
- 8501NR34
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- China Rohs Regulation:
- X
- Product Or Component Type:
- Miniature Relay
- Relay Type:
- standard
- Local Signalling:
- no indicator
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mounting Support:
- socket
- Range Of Product:
- 8501R
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
- Control Type:
- without test button
- Height:
- 27.3 mm
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP1511008EN
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- N/A
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
