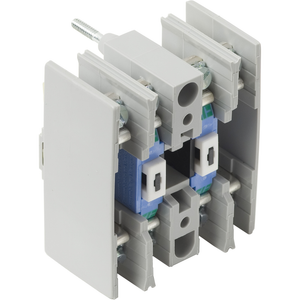

Schneider Electric 8501XB40 Relay Adder Deck 600Vac 10Amps Nema
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This adder deck allows an addition four contacts to be added to a standard relay. The adder deck has the same straight through wiring as the basic relay. This makes wiring easier. The four plug in contact cartridges in this adder deck make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. This adder deck for an 8501X NEMA machine tool relay is UL listed and CSA certified.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range Of Product:
- 8501X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- screw clamp terminals
- Product Certifications:
- CE || CSA LR60905 class 3211 02 || UL recognized E78403 CCN NKCR2
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Environmental Disclosure:
- ENVPEP1310013EN
- Product Or Component Type:
- adder deck
- Circularity Profile:
- ENVEOLI1310013
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508
- Contacts Type And Composition:
- 4 NO 4 standard contact cartridges
- Relay Type:
- control relay
- Warranty:
- 18 months
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508
- Awg Gauge:
- AWG 18...AWG 12 copper
- Mercury Free:
- Yes
