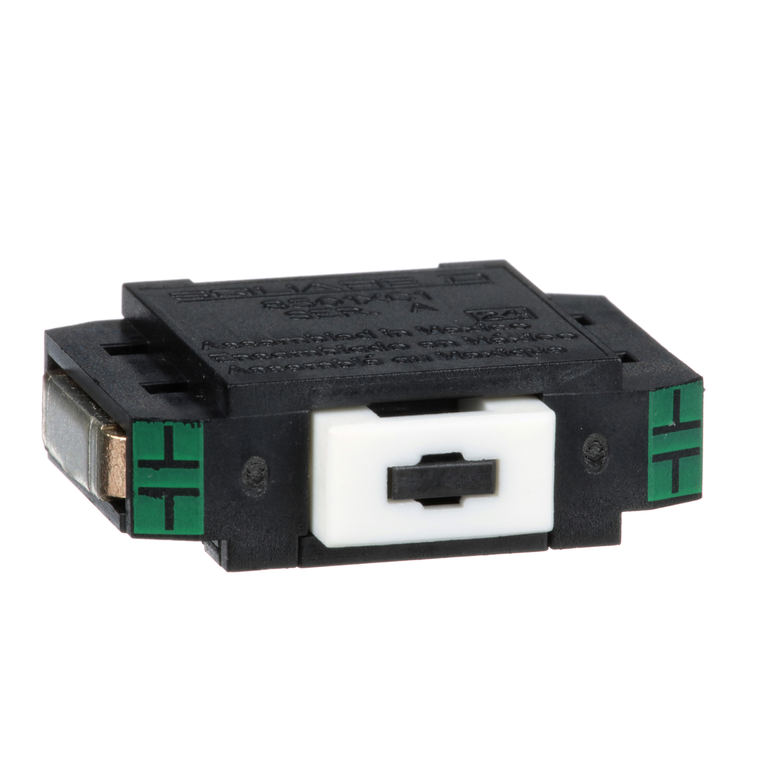

Schneider Electric 8501XC1 Relay Contacts 600Vac 10Amps Nema

(No reviews yet) Write a Review

Write a Review

Schneider Electric 8501XC1 Relay Contacts 600Vac 10Amps Nema

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8501XC1

UPC:

785901537175

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Relay Type:

control relay

Product Or Component Type:

standard contact cartridge

Circularity Profile:

ENVEOLI1310013

Product Certifications:

CE || UL recognized E78403 CCN NKCR2 || CSA LR60905 class 3211 02

Warranty:

18 months

Range Of Product:

8501X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Icm] Rated Short-Circuit Making Capacity:

60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rated Breaking Capacity:

6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Contacts Type And Composition:

1 NO 1 standard contact cartridge

Environmental Disclosure:

ENVPEP1310013EN

Mercury Free:

Yes

Catalog:

View

Datasheet:

View
