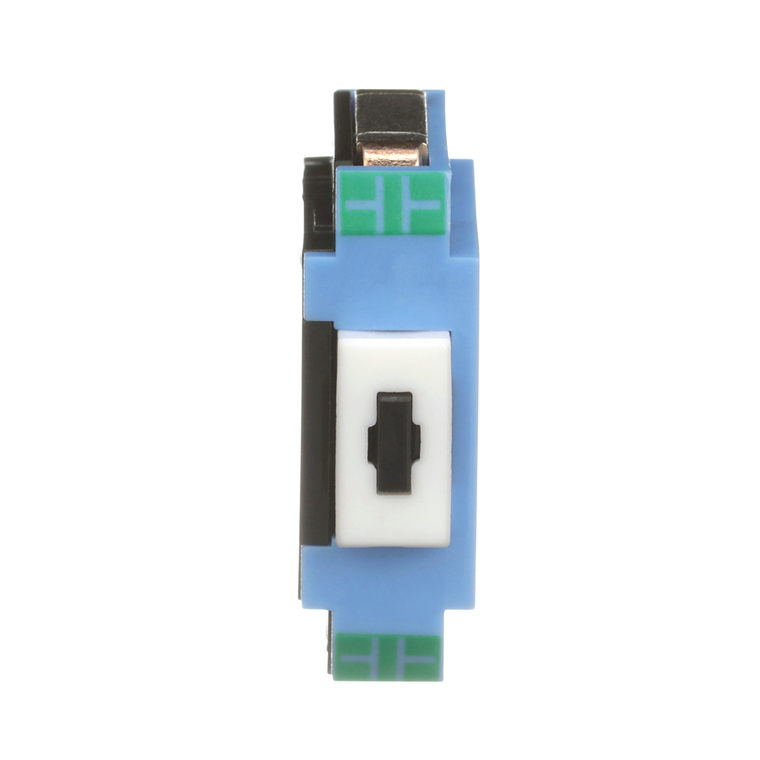

Schneider Electric 8501XC4 Relay Master Cartridge 600Vac 20Amp Nema

Schneider Electric 8501XC4 Relay Master Cartridge 600Vac 20Amp Nema

Schneider Electric
SKU:
8501XC4
|
UPC:
785901537137
$60.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This replacement contact cartridge can be installed in any 8501XMO master control relay. This contact cartridge can be installed as a NO or as a NC contact without disturbing the wiring. The plug in design makes contact conversion or replacement very easy. The contact cartridge is UL listed and CSA certified. The contact cartridge is UL listed and CSA certified.
Additional Information
Warranty:
18 months
Product Or Component Type:
master contact cartridge
Product Certifications:
UL recognized E78403 CCN NKCR2 || CE || CSA LR60905 class 3211 02
Rated Breaking Capacity:
6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508
Circularity Profile:
ENVEOLI1310013
Range Of Product:
8501X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Relay Type:
control relay
Rohs Exemption Information:
Yes
Contacts Type And Composition:
1 NO 1 master contact cartridge
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1310013EN
[Icm] Rated Short-Circuit Making Capacity:
60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
