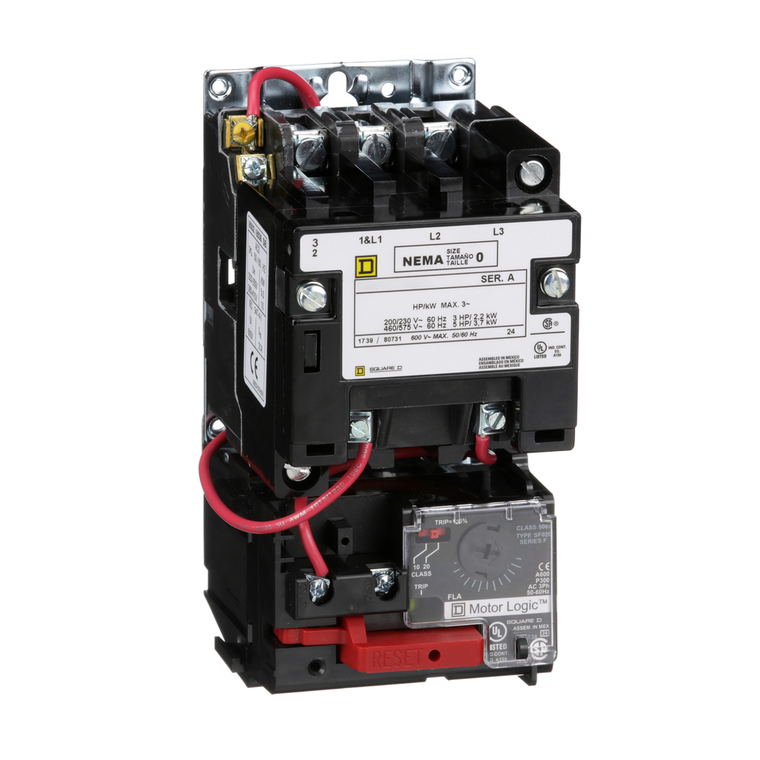

Schneider Electric 8536SBO2V02H308S NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open

(No reviews yet) Write a Review
SKU:
8536SBO2V02H308S
MPN:
8536SBO2V02H308S
Condition:
New
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nema Degree Of Protection:
not rated (open device)
Country of Origin:
Mexico
Control Circuit:
separate control circuit
Warranty:
18 months
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Local Signaling:
without pilot light
Rated Power In Hp:
3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
Line Rated Current:
18 A
Pvc Free:
Yes
Poles Description:
3P
Product Certifications:
UL Listed || CSA || NEMA
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Nema Size:
0
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Phase:
3 phase
Control Type:
no control units
Auxiliary Contact Composition:
without
Range Of Product:
S
Depth:
107 mm
Eu Rohs Directive:
Not compliant
[Ue] Rated Operational Voltage:
600 V AC
Thermal Overload Type:
solid state Motor Logic class 10/20
Product Or Component Type:
motor starter
Motor Starter Type:
non reversing
Electrical Connection:
screw clamp terminals
$578.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 1.5A to 4.5A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/220 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
