Schneider Electric

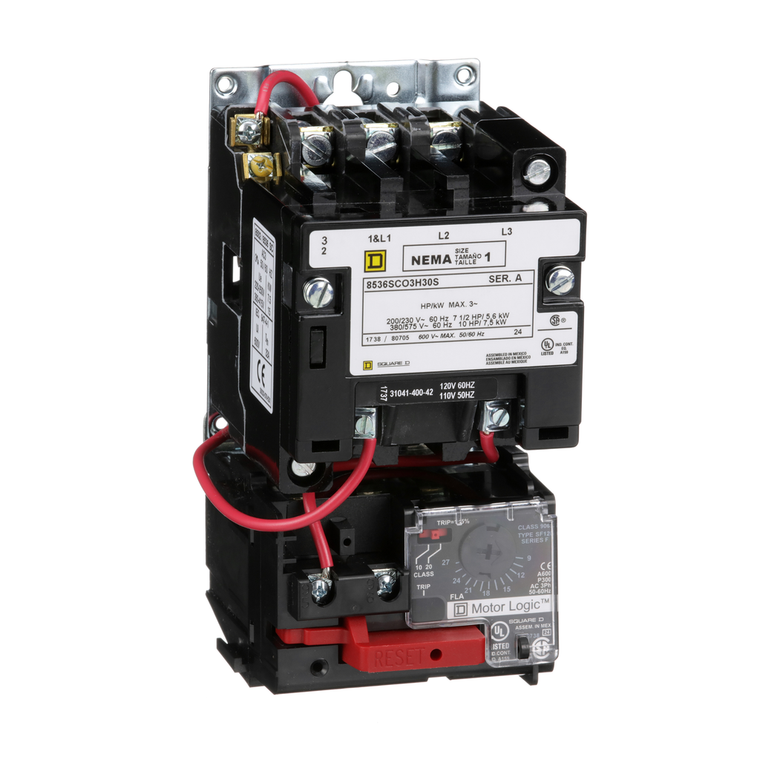

Schneider Electric 8536SCO3V06H30 NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 480VAC coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 8536SCO3V06H30 NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 480VAC coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8536SCO3V06H30

UPC:

MPN:

8536SCO3V06H30

Condition:

New

Depth:

107 mm

Motor Starter Type:

non reversing

Local Signaling:

without pilot light

Poles Description:

3P

Range Of Product:

S

[Ue] Rated Operational Voltage:

600 V AC

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Thermal Overload Type:

solid state Motor Logic class 10/20

Line Rated Current:

27 A

Pvc Free:

Yes

Nema Size:

1

Control Type:

no control units

[Uc] Control Circuit Voltage:

440 V AC 50 Hz || 480 V AC 60 Hz

Phase:

3 phase

Auxiliary Contact Composition:

without

Product Or Component Type:

motor starter

Product Certifications:

UL Listed || CSA || NEMA

Rated Power In Hp:

7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC

Eu Rohs Directive:

Not compliant

Electrical Connection:

screw clamp terminals

Country of Origin:

Mexico

Nema Degree Of Protection:

not rated (open device)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Control Circuit:

common control circuit
