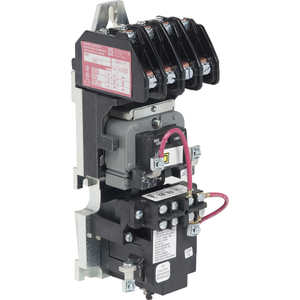

Schneider Electric 8903LXO60V01 8903LX mechanically held lighting contactor, 6 P, 6 NO, 30 A, 600 V, 24 V 60 Hz coil, open
Schneider Electric
$1,044.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LXO60V01 8903LX mechanically held lighting contactor, 6 P, 6 NO, 30 A, 600 V, 24 V 60 Hz coil, open
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 24 VAC 60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 8.81 inches tall, 4.25 inches wide and 3.25 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Sustainable Offer Status:
- Green Premium product
- Control Circuit:
- separate control circuit
- Range Of Product:
- 8903LX
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Local Signaling:
- no indicator
- Poles Description:
- 6P 6 NO
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Nema Degree Of Protection:
- not rated (open device)
- Control Type:
- no control units
- Product Certifications:
- UL Listed || CSA
- Depth:
- 83 mm
- Inrush Power In Va:
- 25-25 VA 60 Hz || 150-150 VA 50/60 Hz
- Environmental Disclosure:
- ENVPEP1407018EN
- Country of Origin:
- Mexico
- Additional Included Device:
- none
- Product Or Component Type:
- Mechanically Held Lighting Contactor
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Halogen Content Performance:
- Halogen free plastic parts product
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Compliant
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Electrical Connection:
- screw-clamp terminals
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Uc] Control Circuit Voltage:
- 24 V AC 60 Hz
