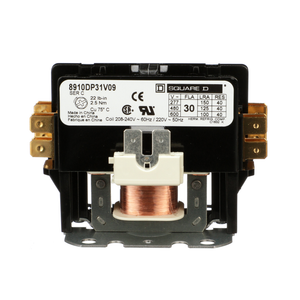

Schneider Electric 8910DP32V14 Contactor 600Vac 30Amp Dp +Options
Schneider Electric
$70.88
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pole Contact Composition:
- 2 NO
- Line Rated Current:
- 30 A
- Electrical Connection:
- binder head || quick connect terminals
- Poles Description:
- 2P
- [Ue] Rated Operational Voltage:
- 600 V AC
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Mercury Free:
- Yes
- Range Of Product:
- DP
- Warranty:
- 18 months
- Maximum Horse Power Rating:
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
- Phase:
- 1 phase
- Locked Rotor Rated Current:
- 125 A 460 V AC || 100 A 575 V AC || 150 A 277 V AC
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- Definite Purpose Contactor
- Product Certifications:
- UL Recognized || CSA
- Catalog:
- View
- Datasheet:
- View
