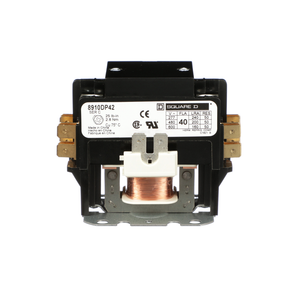

Schneider Electric 8910DP42V14 Contactor 600Vac 40Amp Dp +Options
Schneider Electric
$83.75
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
- Poles Description:
- 2P
- [Ue] Rated Operational Voltage:
- 600 V AC
- Product Certifications:
- UL Recognized || CSA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Pole Contact Composition:
- 2 NO
- Rohs Exemption Information:
- Yes
- Phase:
- 1 phase
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Locked Rotor Rated Current:
- 240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Line Rated Current:
- 40 A
- Product Or Component Type:
- Definite Purpose Contactor
- Range Of Product:
- DP
- Warranty:
- 18 months
- Electrical Connection:
- quick connect terminals || box lugs
- Maximum Horse Power Rating:
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
