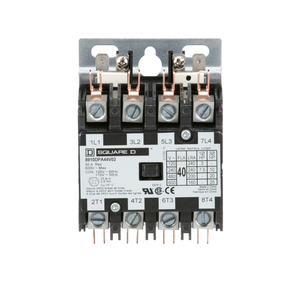

Name: Schneider Electric 8910DPA43V14 Contactor 600Vac 40Amp Dpa +Options
Brand: Schneider Electric
SKU: 8910DPA43V14
Price: 113.25 USD
Availability: InStock

Schneider Electric 8910DPA43V14 Contactor 600Vac 40Amp Dpa +Options

(No reviews yet) Write a Review

SKU:

8910DPA43V14

UPC:

7.85901E+11

Condition:

New

Maximum Horse Power Rating:

3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase

Phase:

3 phase

Mercury Free:

Yes

[Ue] Rated Operational Voltage:

600 V AC

Locked Rotor Rated Current:

240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

Definite Purpose Contactor

Rohs Exemption Information:

Yes

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz

Line Rated Current:

40 A

Product Certifications:

UL Recognized || CSA

Poles Description:

Electrical Connection:

box lugs || quick connect terminals

Warranty:

18 months

Eu Rohs Directive:

Compliant with Exemptions

Range Of Product:

DPA

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Pole Contact Composition:

3 NO

Catalog:

View

Datasheet:

View

Description

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
