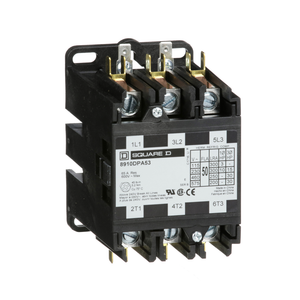

Schneider Electric 8910DPA53V09 Contactor 600Vac 50Amp Dpa +Options

Schneider Electric 8910DPA53V09 Contactor 600Vac 50Amp Dpa +Options

Schneider Electric
SKU:
8910DPA53V09
|
UPC:
785901080732
Availability:
Contact us to confirm availability and lead times.
$224.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

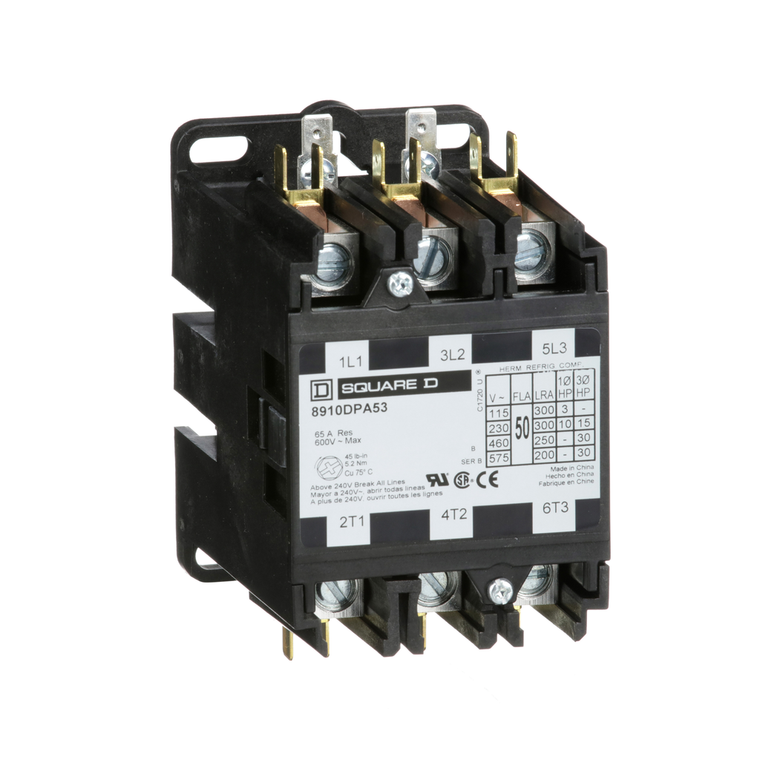

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Additional Information
Electrical Connection:
box lugs || quick connect terminals
[Ue] Rated Operational Voltage:
600 V AC
Mercury Free:
Yes
Pole Contact Composition:
3 NO
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Horse Power Rating:
3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 15-15 hp 230 V AC, 3 phase || 30-30 hp 460 V AC, 3 phase || 30-30 hp 575 V AC, 3 phase
Phase:
3 phase
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
Line Rated Current:
50 A
[Uc] Control Circuit Voltage:
208...240 V AC 60 Hz || 220 V AC 50 Hz
Product Certifications:
UL Recognized || CSA
Rohs Exemption Information:
Yes
Poles Description:
3P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range Of Product:
DPA
Locked Rotor Rated Current:
300 A 277 V AC || 250 A 460 V AC || 200 A 575 V AC
Product Or Component Type:
Definite Purpose Contactor
