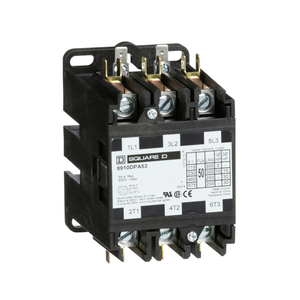

Schneider Electric 8910DPA63V04 Contactor 600Vac 60Amp Dpa +Options Pack of 8

Schneider Electric 8910DPA63V04 Contactor 600Vac 60Amp Dpa +Options Pack of 8

Schneider Electric
SKU:
8910DPA63V04
|
UPC:
785901024521
Availability:
Contact us to confirm availability and lead times.
$1,988.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 277 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Additional Information
Poles Description:
3P
Range Of Product:
DPA
Product Certifications:
UL Recognized || CSA
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC
Warranty:
18 months
Phase:
3 phase
Maximum Horse Power Rating:
5-5 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 30-30 hp 460 V AC, 3 phase || 30-30 hp 575 V AC, 3 phase || 25-25 hp 230 V AC, 3 phase
Eu Rohs Directive:
Compliant with Exemptions
[Uc] Control Circuit Voltage:
277 V AC 60 Hz
Pole Contact Composition:
3 NO
Rohs Exemption Information:
Yes
Product Or Component Type:
Definite Purpose Contactor
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Connection:
box lugs || quick connect terminals
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
60 A
Locked Rotor Rated Current:
360 A 277 V AC || 300 A 460 V AC || 240 A 575 V AC
