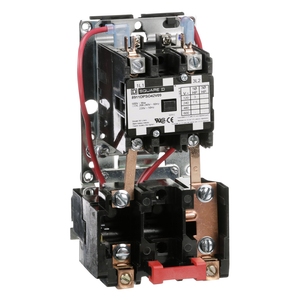

Schneider Electric 8911DPSO13V09 NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open

Schneider Electric 8911DPSO13V09 NEMA starter, Definite Purpose, 20A, 7.5HP at 600VAC, 3 phase, 3 pole, melting alloy, 208V to 240VAC coil, open

Schneider Electric
SKU:
8911DPSO13V09
$321.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This definite purpose contactor is an open device without an enclosure. Enclosure is 6.73 inches tall, 3.50 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Additional Information
Nema Degree Of Protection:
not rated (open device)
[Uc] Control Circuit Voltage:
220 V AC 50 Hz || 208...240 V AC 60 Hz
Number Of Thermal Units Required:
3
Line Rated Current:
20 A
[Ue] Rated Operational Voltage:
600 V AC
Phase:
3 phase
Maximum Horse Power Rating:
3-3 hp 230 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 3 phase || 1.5-1.5 hp 115 V AC, 1 phase || 7.5-7.5 hp 460 V AC, 3 phase || 7.5-7.5 hp 575 V AC, 3 phase
Poles Description:
3P
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Country of Origin:
United States
Locked Rotor Rated Current:
120 A 230 V AC || 100 A 460 V AC || 80 A 575 V AC
Thermal Overload Type:
melting alloy
Eu Rohs Directive:
Compliant with Exemptions
Range Of Product:
DPS
Warranty:
18 months
Product Or Component Type:
Definite Purpose Starter
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
