Schneider Electric 9001BG214 Control Station 600Vac 5A T-B

Schneider Electric 9001BG214 Control Station 600Vac 5A T-B

Schneider Electric
SKU:
9001BG214
|
UPC:
785901390251
Availability:
Contact us to confirm availability and lead times.
$78.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

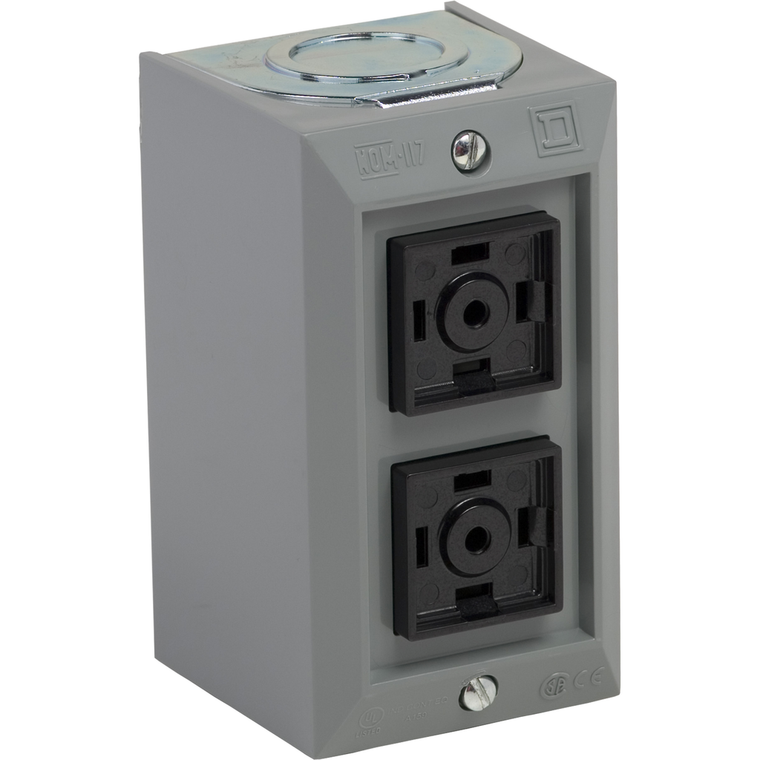

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. Each push button has a normally open and a normally closed contact. Each push button is supplied without a legend insert. The required legend insert must be purchased separately. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified. "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."
Additional Information
Environmental Characteristic:
standard environment
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
Device Mounting:
surface
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
complete control station
Device Short Name:
9001BG
Type Of Installation:
indoor
Sustainable Offer Status:
Green Premium product
Nema Degree Of Protection:
NEMA 1
Product Certifications:
CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI1304002EN
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Range Of Product:
Harmony 9001B
[Ie] Rated Operational Current:
5 A 600 V
Control Station Composition:
2 push-buttons
Mercury Free:
Yes
Connections - Terminals:
screw clamp terminal
Contacts Type And Composition:
2 NO + 2 NC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1304002
Datasheet:
View
