Schneider Electric 9001BW256 Control Station 600Vac 5A T-B
Schneider Electric
$314.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

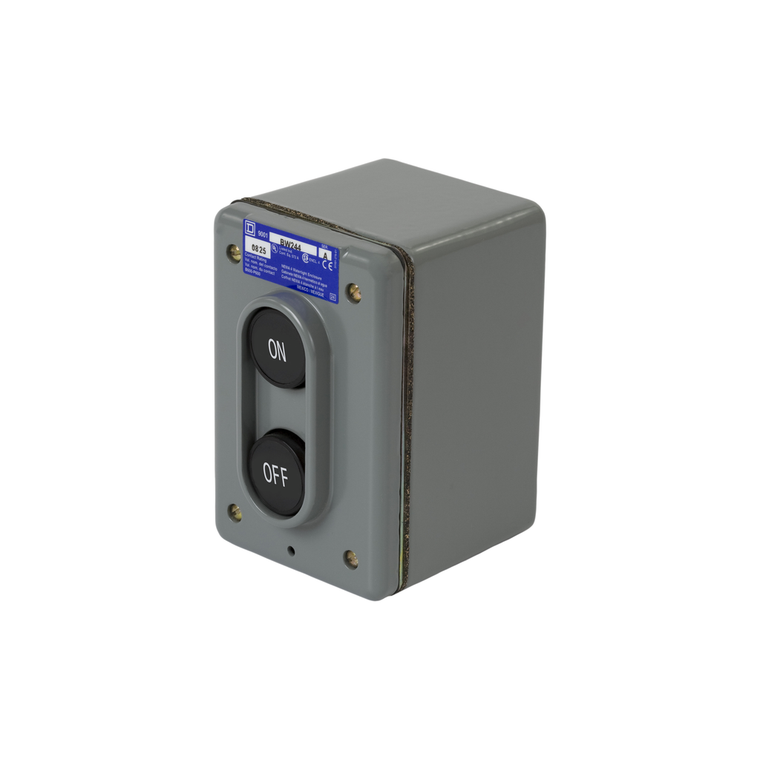

Schneider Electric 9001BW256 Control Station 600Vac 5A T-B
CONTROL STATION 30 Standard Duty Maintained Pushbuttons 2 N.O. Interclocked
- Circularity Profile:
- ENVEOLI1304003EN
- Cad Overall Width:
- 70 mm
- Environmental Characteristic:
- waterproof || dustproof
- Cad Overall Depth:
- 91 mm
- Product Or Component Type:
- complete control station
- Environmental Disclosure:
- ENVPEP1304003EN
- Rohs Exemption Information:
- Yes
- Control Station Composition:
- 1 flush push-button, black, white ON || 1 flush push-button, black, white OFF
- Control Station Application:
- two functions
- Product Certifications:
- UL Listed || CSA
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Material:
- cast aluminium
- Contacts Type And Composition:
- 1 NO + 1 NC
- Device Short Name:
- 9001BW
- Device Mounting:
- surface
- Contact Operation:
- interlocked
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony 9001BW
- Cable Entry:
- 1 entry for 1/2" - 14 NPT
- Ambient Air Temperature For Operation:
- -25-70 °C
- Colour Of Base Of Enclosure:
- grey
- Cad Overall Height:
- 108 mm
- Toxic Heavy Metal Free:
- Yes
- Standards:
- UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-5-1
- Mechanical Durability:
- 5000000 cycles
- Type Of Operator:
- maintained
- Nema Degree Of Protection:
- NEMA 1 || NEMA 4
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Type Of Installation:
- indoor/outdoor
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Ie] Rated Operational Current:
- 0.6 A 600 V, AC-1/DC-1 || 0.75 A 480 V, AC || 1.5 A 240 V, AC || 3.75 A 120 V, AC
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Catalog:
- View
- Datasheet:
- View
