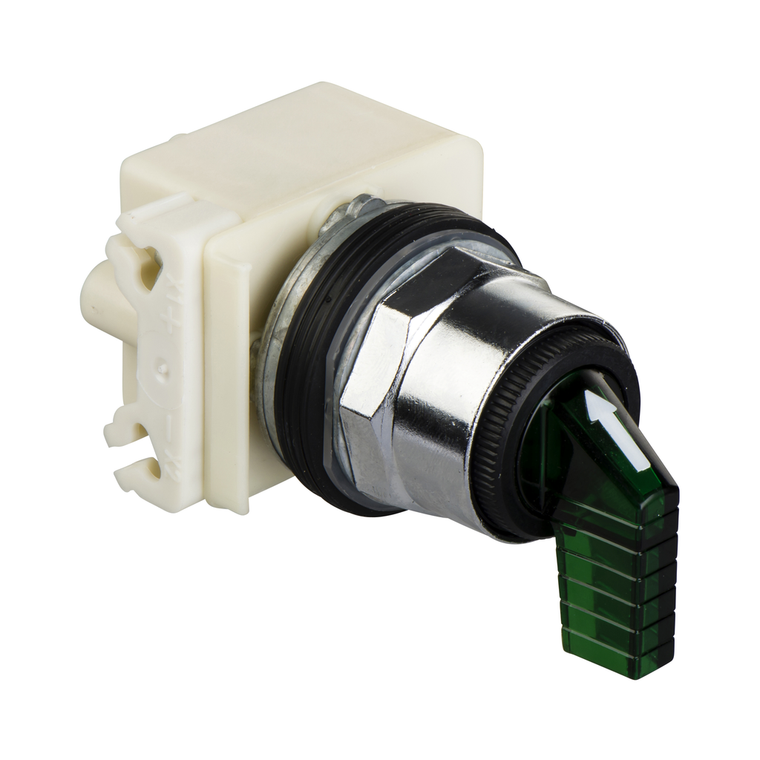

Schneider Electric 9001K11J35LGFG Selector Switch 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001K11J35LGFG Selector Switch 600Vac 10A 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001K11J35LGFG

UPC:

3389118043626

MPN:

Condition:

New

Cap/Operator Or Lens Colour:

green

Ambient Air Temperature For Operation:

-25-70 °C

[Us] Rated Supply Voltage:

24 V AC/DC

Bulb Base:

BA 9s

Light Source Colour:

green

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Size:

30 mm

Light Source:

LED

Electrical Shock Protection Class:

class II IEC 61140

Circularity Profile:

N/A

Ambient Air Temperature For Storage:

-40-70 °C

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

Device Short Name:

9001K

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

head for illuminated selector switch

Net Weight:

0.245 kg

Device Presentation:

basic element

Mounting Diameter:

30 mm

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Operator Position Information:

2 positions

Product Certifications:

UL 508 || NEMA

Standards:

UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852

Product Compatibility:

9001KA2 side 1 or 2

Light Block Supply:

direct

Shock Resistance:

50 gn IEC 60068-2-27

Bezel Material:

metal

Range Of Product:

Harmony 9001K

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

[Us] Rated Supply Voltage:

24...28 V

Ip Degree Of Protection:

IP66 IEC 60529

Shape Of Signaling Unit Head:

octagonal

Mechanical Durability:

500000 cycles

Mercury Free:

Yes

Operator Profile:

green long handle

Cam Profile:

5

Light Block Colour:

green

Operator Profile:

long handle

China Rohs Regulation:

X

Contacts Type And Composition:

without contact block

Protective Treatment:

TC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmental Disclosure:

ENVPEP121006EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold
