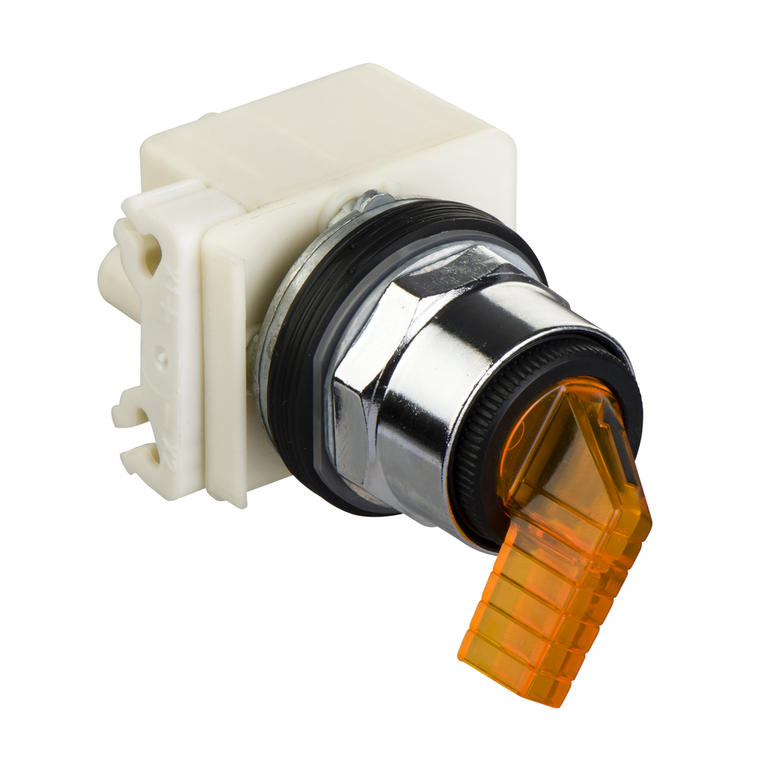

Schneider Electric 9001K11J35LYFA Selector Switch Operator 30Mm T-K
Schneider Electric
$167.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony 9001K, modular illuminated amber selector switch with long handle has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, is supplied with a 24V AC/DC integral LED and is supplied with a E cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
- Protective Treatment:
- TC
- Contacts Type And Composition:
- without contact block
- [Us] Rated Supply Voltage:
- 24...28 V
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Shock Protection Class:
- class II IEC 61140
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 30 mm
- Range Of Product:
- Harmony 9001K
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- Warranty:
- 18 months
- Operator Profile:
- amber long handle
- Shape Of Signaling Unit Head:
- octagonal
- Net Weight:
- 0.245 kg
- Operator Profile:
- long handle
- Cap/Operator Or Lens Colour:
- amber
- China Rohs Regulation:
- X
- Product Certifications:
- UL 508 || NEMA
- Bulb Base:
- BA 9s
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 500000 cycles
- Size:
- 30 mm
- Light Block Supply:
- direct
- Product Compatibility:
- 9001KA2 side 1 or 2
- Operator Position Information:
- 2 positions
- Light Source Colour:
- yellow
- Device Short Name:
- 9001K
- Bezel Material:
- metal
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Product Or Component Type:
- head for illuminated selector switch
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Light Block Colour:
- amber
- Circularity Profile:
- N/A
- Standards:
- EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1
- Light Source:
- LED
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Presentation:
- basic element
- Ambient Air Temperature For Operation:
- -25-70 °C
- Cam Profile:
- 5
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP121006EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
