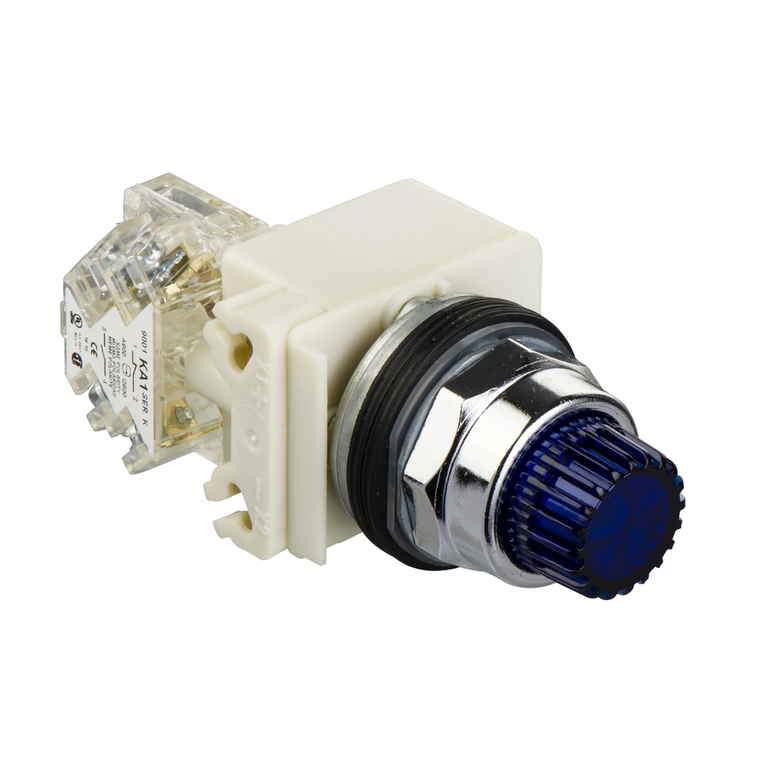

Schneider Electric 9001K2L35LH13 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$184.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony 9001K, modular illuminated projecting blue push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
- Light Block Supply:
- full voltage
- Net Weight:
- 0.166 kg
- Tightening Torque:
- 0.8-0.8 N.m IEC 60947-1
- Bulb Base:
- BA 9s
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -25-70 °C
- [Us] Rated Supply Voltage:
- 24...28 V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Operator Profile:
- blue projecting, unmarked
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TC
- Standards:
- EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520 || UL 508 || JIS C 852
- Range Of Product:
- Harmony 9001K
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Short-Circuit Protection:
- 10 A cartridge fuse IEC 60947-5-1
- Operating Position:
- any position
- Light Source:
- incandescent
- Contact Operation:
- standard
- Circularity Profile:
- N/A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Presentation:
- complete product
- China Rohs Regulation:
- X
- [Icm] Rated Short-Circuit Making Capacity:
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
- Operator Additional Information:
- without guard
- Device Short Name:
- 9001K
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV IEC 60947-1
- Shape Of Signaling Unit Head:
- octagonal
- Product Certifications:
- UL 508 || NEMA
- Contacts Type And Composition:
- 1 C/O
- Shape Of Screw Head:
- cross slotted
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP121006EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Profile:
- projecting
- Cad Overall Width:
- 54 mm
- Product Or Component Type:
- illuminated push-button
- Terminals Description Iso N°1:
- (13-14-11-12)OF
- Contacts Material:
- silver alloy contacts
- Warranty:
- 18 months
- Positive Opening:
- without
- Rated Breaking Capacity:
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Light Source:
- incandescent bulb
- Mounting Diameter:
- 30 mm
- Rohs Exemption Information:
- Yes
- Connections - Terminals:
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Cap/Operator Or Lens Colour:
- blue
- Cad Overall Depth:
- 103 mm
- [Us] Rated Supply Voltage:
- 24...28 V AC/DC
- Cad Overall Height:
- 42 mm
- Overvoltage Category:
- class II IEC 61140
- Bezel Material:
- metal
- Size:
- 30 mm
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Ip Degree Of Protection:
- IP66 IEC 60529
- Light Block Supply:
- direct
- Mechanical Durability:
- 5000000 cycles
