Schneider Electric 9001K43J35FLH1 Selector Switch 600Vac 10A 30Mm T-K

Schneider Electric 9001K43J35FLH1 Selector Switch 600Vac 10A 30Mm T-K

Schneider Electric
SKU:
9001K43J35FLH1
|
UPC:
785901895558
Availability:
Contact us to confirm availability and lead times.
$198.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

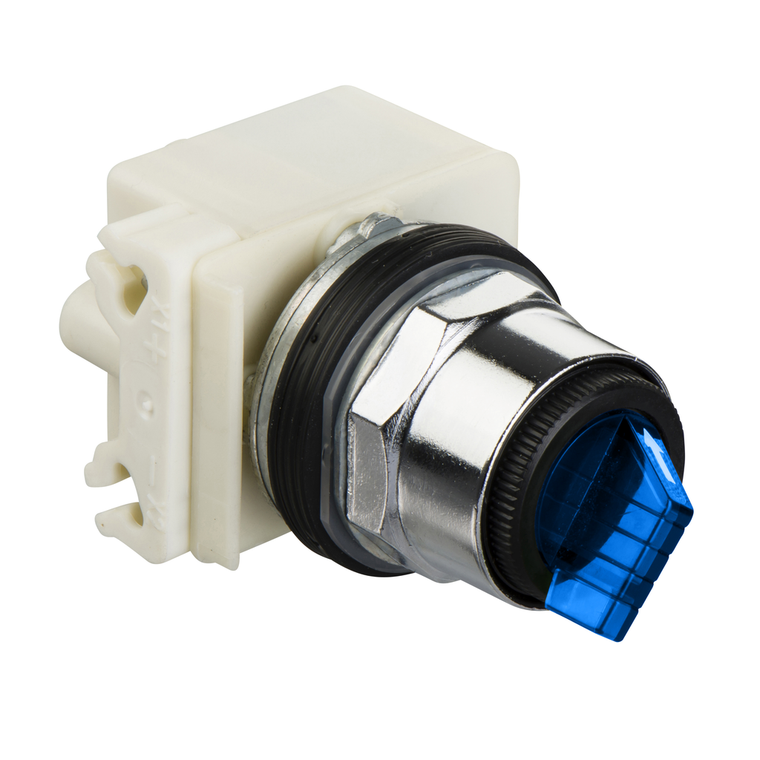

Illuminated selector switch, Harmony 9001K, metal, long handle, blue, 30mm, 3 positions, stay put, 24-28V, 1 C/O
Additional Information
Environmental Disclosure:
ENVPEP121006EN
Operator Position Information:
3 positions
Operator Profile:
gloved hand knob
Device Presentation:
complete product
Warranty:
18 months
Circularity Profile:
N/A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Type Of Operator:
stay put
[Us] Rated Supply Voltage:
24...28 V
Operator Profile:
long handle
Contacts Type And Composition:
1 C/O
Rohs Exemption Information:
Yes
Range Of Product:
Harmony 9001K
Device Short Name:
K
Cap/Operator Or Lens Colour:
blue
Bezel Material:
metal
Type Of Operator:
maintained
Product Or Component Type:
illuminated selector switch
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Light Source:
incandescent bulb
Mercury Free:
Yes
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Size:
30 mm
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Cam Profile:
3
Bulb Base:
BA 9s
Connections - Terminals:
screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Light Block Supply:
full voltage
Product Certifications:
CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
Mounting Diameter:
30 mm
Brochure:
View
Catalog:
View
Datasheet:
View
QN-QUOTE-REQUEST:
true
