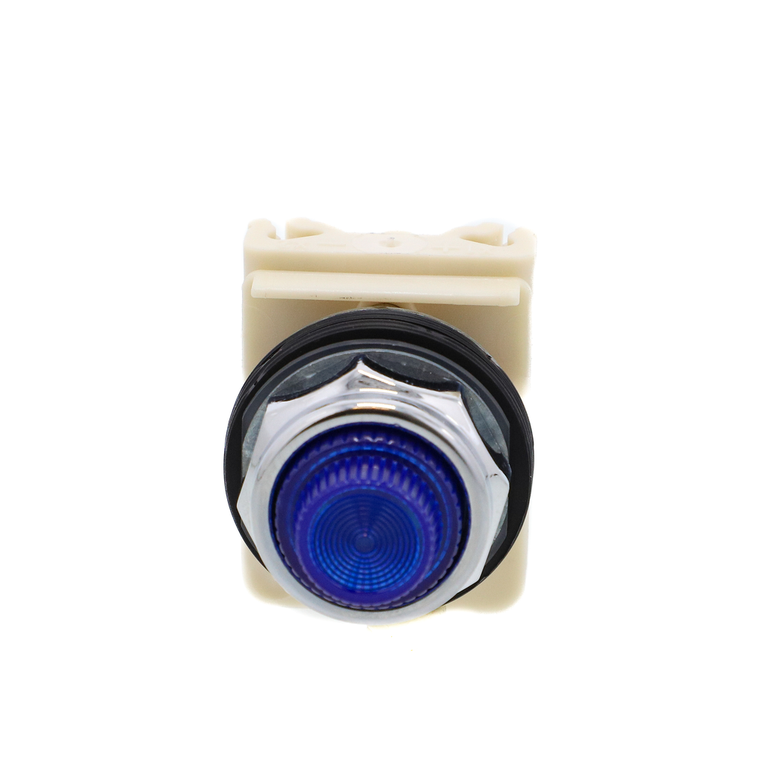

Schneider Electric 9001KP35L31 Pilot Light 28V 30Mm Type K +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KP35L31 Pilot Light 28V 30Mm Type K +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KP35L31

UPC:

785901032717

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Shape Of Screw Head:

round

Product Or Component Type:

pilot light

Operating Mode:

normal

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Lens Material:

polycarbonate

Device Presentation:

complete product

Light Block Supply:

full voltage 28 V || direct 24 V

Mounting Diameter:

30 mm

Operating Position:

any position

Light Block Supply:

full voltage

Product Certifications:

UL listed file E42259 CCN NKCR || CE || CSA LR25490 class 3211 03

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

K

Light Source:

incandescent bulb

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Bezel Material:

metal

[Us] Rated Supply Voltage:

24...28 V AC/DC

Range Of Product:

Harmony 9001K

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Lens Type:

fresnel plastic

Environmental Disclosure:

ENVPEP121006EN

Rohs Exemption Information:

Yes

Light Source:

incandescent

Mercury Free:

Yes

Bulb Base:

BA 9s

[Us] Rated Supply Voltage:

24...28 V

Size:

30 mm

Lens Type:

fresnel

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Cap/Operator Or Lens Colour:

blue
