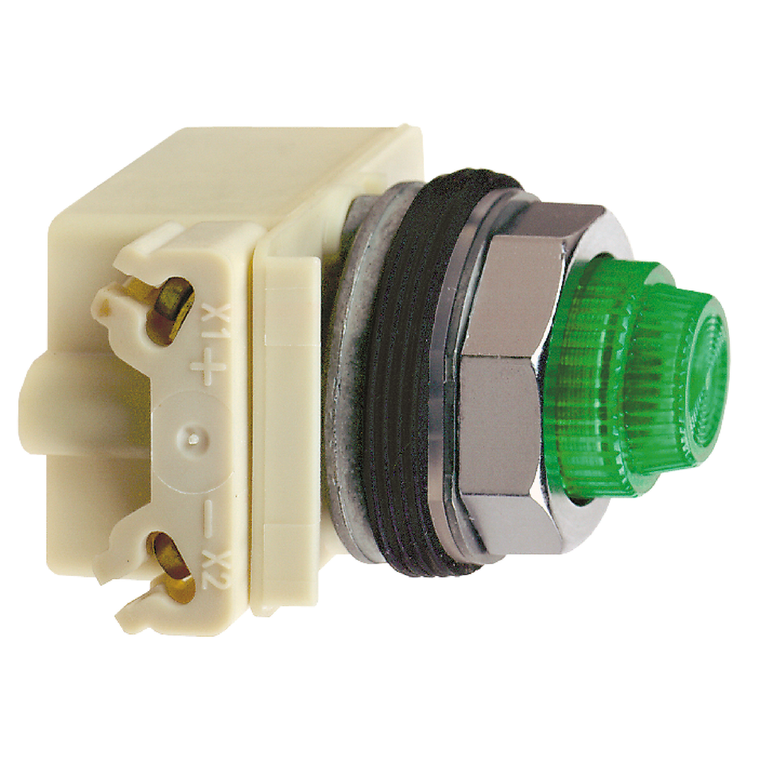

Schneider Electric 9001KP38LGG31 Pilot Light 120V 30Mm Type K +Options
This product is part of the Harmony 9001K range, an offer of pilot lights. The pilot light is supplied with Fresnel lens with a round signalling unit head, diameter of 30mm. The supply voltage of this light block is 120V AC/DC. This pilot light has a BA9s base and green super bright light source for high visibility. It is furnished with screw clamp terminals for electrical connection. It can be operated by any position. It is light unit with a conventional free air thermal current of 10A and rated insulation voltage of 250V. It is heavy duty, oil-tight, waterproof and dust-tight without requiring boots thanks to its IP66 and NEMA 4 ratings. This pilot light bezel is made of chrome plated metal with plastic lens. Its dimensions are 54mm (width) x 70mm (depth) x 42mm (height) and weighs 0.134kg. It is suitable for use in automotive, machine tools, crane and hoist, food and beverage, material handling, petrochemical, wastewater treatment, metallurgy and industrial applications. This product is certified by UL, NEMA, CSA and CE. It complies with UL 508, JIS C8201-5-1, JIS C8201-1, JIS C 852, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1 and CSA C22.2 No 14 standards. It is easily installed into 1/16inch to 1/4inch diameter panel cut outs. This robust range offers long-term reliability in heavy duty industrial applications and extreme environments.
- Mounting Diameter:
- 30 mm
- [Ui] Rated Insulation Voltage:
- 250 V 2)IEC 60947-1
- Range Of Product:
- Harmony 9001K
- Rohs Exemption Information:
- Yes
- Cad Overall Depth:
- 42 mm
- Net Weight:
- 0.134 kg
- Sustainable Offer Status:
- Green Premium product
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Shape Of Signaling Unit Head:
- round
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP121006EN
- Protective Treatment:
- TC
- Lens Type:
- fresnel plastic
- Bezel Material:
- chromium plated metal
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Tightening Torque:
- 0.8-0.8 N.m IEC 60947-1
- Light Block Supply:
- direct 120 V AC/DC
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- 9001K
- Overvoltage Category:
- class II IEC 61140
- Short-Circuit Protection:
- 10 A cartridge fuse IEC 60947-5-1
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 54 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Screw Head:
- cross slotted
- Light Source:
- Green LED
- Operating Position:
- any position
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Bulb Base:
- BA 9s
- Circularity Profile:
- N/A
- Ip Degree Of Protection:
- IP66 IEC 60529
- Product Certifications:
- UL 508 || NEMA
- Product Or Component Type:
- pilot light
- Cad Overall Height:
- 70 mm
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- China Rohs Regulation:
- X
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Cap/Operator Or Lens Colour:
- green
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -25-70 °C
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C 852 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
