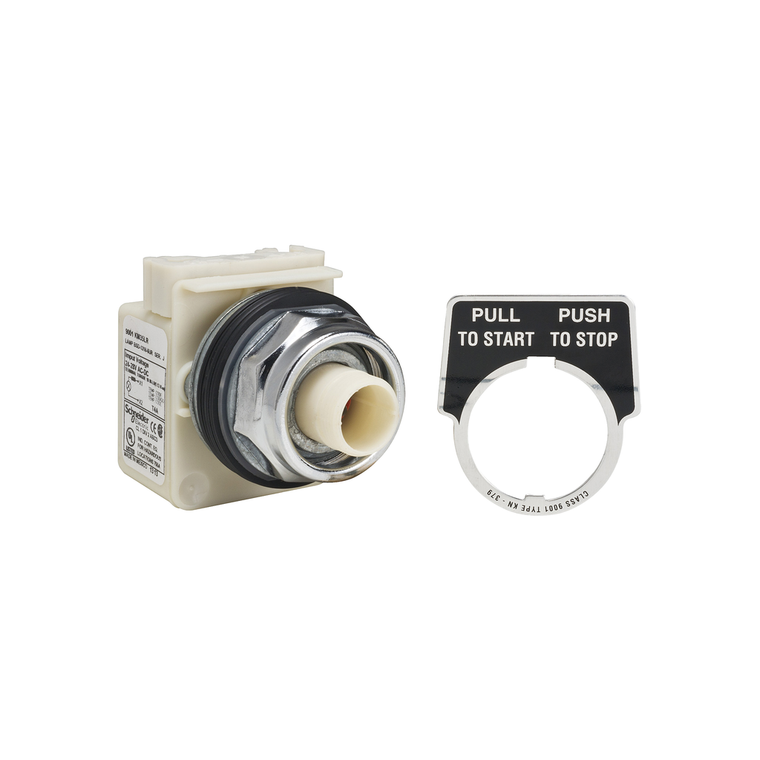

Schneider Electric 9001KR9P35LR Pushbutton Operator 30Mm Type K +Options

Schneider Electric 9001KR9P35LR Pushbutton Operator 30Mm Type K +Options

Schneider Electric
SKU:
9001KR9P35LR
|
UPC:
785901542469
$233.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This circular shape push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear colors It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Additional Information
Circularity Profile:
N/A
[Us] Rated Supply Voltage:
24...28 V
Cap/Operator Or Lens Colour:
without mushroom
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Light Source Colour:
red
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Product Or Component Type:
head for illuminated push-button
Warranty:
18 months
Shape Of Signaling Unit Head:
round
Mounting Diameter:
30 mm
Bezel Material:
metal
Operator Profile:
flush
Operator Position Information:
2 positions
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Range Of Product:
Harmony 9001K
Type Of Operator:
push-pull
Device Short Name:
9001K
China Rohs Regulation:
X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP121006EN
Type Of Operator:
spring return
Contacts Type And Composition:
without contact block
Brochure:
View
Datasheet:
View
