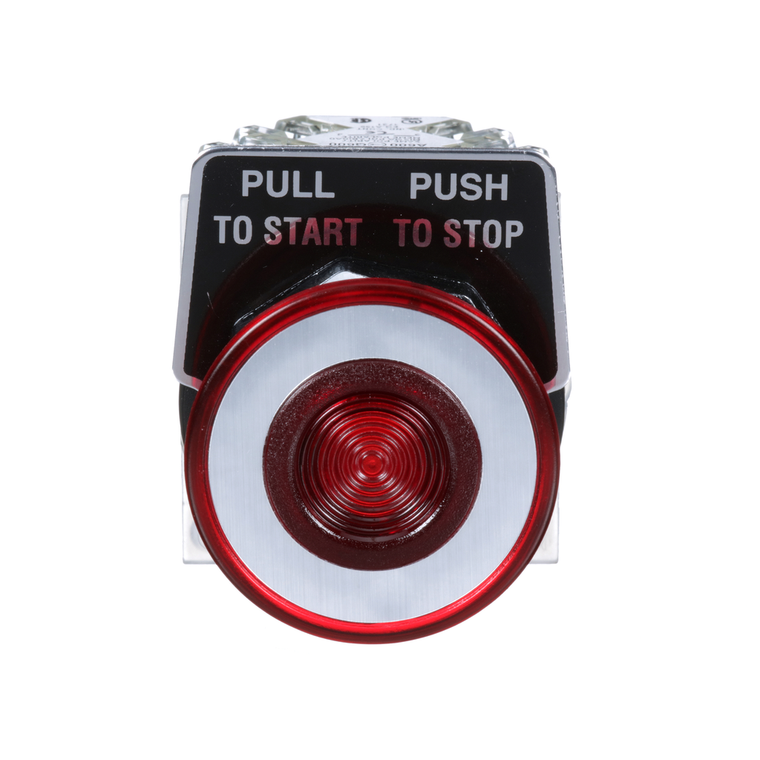

Schneider Electric 9001KR9RH13 Pushbutton 600Vac 10A 30Mm Type K
Schneider Electric
$188.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 maintained positions push pull operator and it is supplied with 1 x C/O contact and screw clamp terminals. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Height:
- 45 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contacts Type And Composition:
- 1 C/O
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Ip Degree Of Protection:
- IP66 IEC 60529
- Product Or Component Type:
- push-button
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Contacts Material:
- silver alloy contacts
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Cad Overall Depth:
- 74 mm
- Cad Overall Width:
- 46 mm
- Environmental Disclosure:
- ENVPEP121006EN
- Device Presentation:
- complete product
- Size:
- 30 mm
- [Icm] Rated Short-Circuit Making Capacity:
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Net Weight:
- 0.141 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Range Of Product:
- Harmony 9001K
- Mounting Diameter:
- 30 mm
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Protective Treatment:
- TC
- China Rohs Regulation:
- X
- Cap/Operator Or Lens Colour:
- red
- Operator Position Information:
- 2 positions
- Mechanical Durability:
- 5000000 cycles
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Operating Position:
- any position
- Head Material:
- plastic
- Shape Of Screw Head:
- cross slotted
- Operator Profile:
- mushroom à 41 mm
- Device Short Name:
- 9001K
- [Ui] Rated Insulation Voltage:
- 250 V 3)EN/IEC 60947-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- N/A
- Operator Additional Information:
- screw-on plastic
- Positive Opening:
- without
- Overvoltage Category:
- class II IEC 61140
- Warranty:
- 18 months
- Operator Profile:
- red mushroom à 41 mm, unmarked
- Rated Breaking Capacity:
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Product Certifications:
- UL 508 || NEMA
- Bezel Material:
- metal
- Sustainable Offer Status:
- Green Premium product
