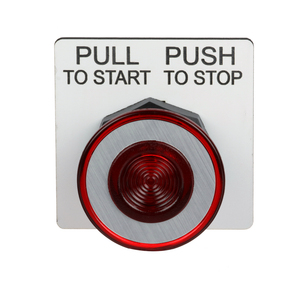

Schneider Electric 9001KR9RH6 30Mm Push-Pull Operator Red Knob
Schneider Electric
$164.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001KR9RH6 30Mm Push-Pull Operator Red Knob
This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NC contact. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
- Rohs Exemption Information:
- Yes
- Contacts Material:
- silver alloy contacts
- Range Of Product:
- Harmony 9001K
- Ip Degree Of Protection:
- IP66 IEC 60529
- Shape Of Signaling Unit Head:
- round
- Size:
- 30 mm
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Rated Breaking Capacity:
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Mercury Free:
- Yes
- Operating Position:
- any position
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Bezel Material:
- metal
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Cad Overall Height:
- 103 mm
- Operator Additional Information:
- screw-on plastic
- Operator Profile:
- red mushroom à 41 mm, unmarked
- Overvoltage Category:
- class II IEC 61140
- Mounting Diameter:
- 30 mm
- Environmental Disclosure:
- ENVPEP121006EN
- Head Material:
- plastic
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cap/Operator Or Lens Colour:
- red
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Product Or Component Type:
- push-button
- Net Weight:
- 0.141 kg
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Presentation:
- complete product
- Cad Overall Depth:
- 74 mm
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- NEMA || UL 508
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Warranty:
- 18 months
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV IEC 60947-1
- Mechanical Durability:
- 5000000 cycles
- Contacts Type And Composition:
- 1 NC
- Operator Position Information:
- 2 positions
- Device Short Name:
- 9001K
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Short-Circuit Protection:
- 10 A cartridge fuse IEC 60947-5-1
- Protective Treatment:
- TC
- China Rohs Regulation:
- X
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Operator Profile:
- mushroom à 41 mm
- Positive Opening:
- with IEC 60947-5-2
- Tightening Torque:
- 0.8-0.8 N.m IEC 60947-1
- Sustainable Offer Status:
- Green Premium product
- Shape Of Screw Head:
- cross slotted
- Cad Overall Width:
- 54 mm
- [Icm] Rated Short-Circuit Making Capacity:
- 12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
