Schneider Electric

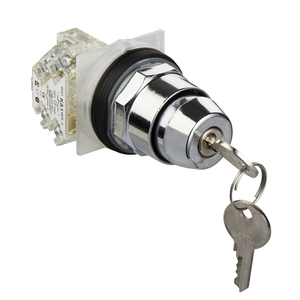

Schneider Electric 9001KS11K1H2 Selector Switch 600Vac 10Amp 30Mm K

SKU:

9001KS11K1H2

UPC:

785901034810

MPN:

Condition:

New

Mercury Free:

Yes

Size:

30 mm

Device Presentation:

complete product

Device Short Name:

K

Mounting Diameter:

30 mm

Key Number:

E10

Bezel Material:

metal

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operator Position Information:

2 positions

Product Certifications:

UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03

Type Of Operator:

stay put

Rohs Exemption Information:

Yes

Range Of Product:

Harmony 9001K

Cam Profile:

5

Circularity Profile:

N/A

Operator Profile:

key switch

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Operator Profile:

black key operated knob

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP121006EN

Type Of Operator:

maintained

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Key Withdrawal Position:

left

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Connections - Terminals:

screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Warranty:

18 months

Product Or Component Type:

selector switch

Contacts Type And Composition:

2 C/O

Brochure:

View

Catalog:

View

Datasheet:

View
