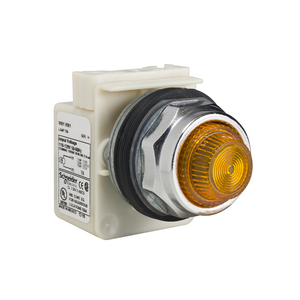

Schneider Electric 9001KT1LGG31 Pilot Light 120Vac 30Mm Type K +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KT1LGG31 Pilot Light 120Vac 30Mm Type K +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KT1LGG31

UPC:

785901797609

MPN:

Condition:

New

Contacts Type And Composition:

1 C/O

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Overvoltage Category:

class II IEC 61140

Cad Overall Height:

70 mm

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-25-70 °C

Lens Type:

fresnel

Product Or Component Type:

push-to-test pilot light

Light Block Supply:

via integral transformer 110...120 V AC 50/60 Hz 6 V)

Short-Circuit Protection:

10 A cartridge fuse IEC 60947-5-1

Lens Type:

fresnel plastic

Light Source:

Green LED

Shock Resistance:

50 gn IEC 60068-2-27

Size:

30 mm

Lens Material:

polycarbonate

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

110...120 V

Range Of Product:

Harmony 9001K

Light Source:

LED

Cap/Operator Or Lens Colour:

green

Operating Mode:

push-to-test

Device Short Name:

9001K

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

42 mm

Tightening Torque:

0.8-0.8 N.m IEC 60947-1

Circularity Profile:

N/A

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Supply Frequency:

50...60 Hz

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

UL 508 || NEMA

Cad Overall Width:

54 mm

Environmental Disclosure:

ENVPEP121006EN

Protective Treatment:

TC

Light Source Colour:

green

Warranty:

18 months

China Rohs Regulation:

X

Ip Degree Of Protection:

IP66 IEC 60529

Bulb Base:

BA 9s

Standards:

UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C 852 || JIS C8201-1

Bezel Material:

metal

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Light Block Supply:

via integral transformer

Sustainable Offer Status:

Green Premium product

Net Weight:

0.21 kg

Operating Position:

any position

Shape Of Signaling Unit Head:

round

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Rohs Exemption Information:

Yes

Mounting Diameter:

30 mm

Shape Of Screw Head:

cross slotted
