Schneider Electric

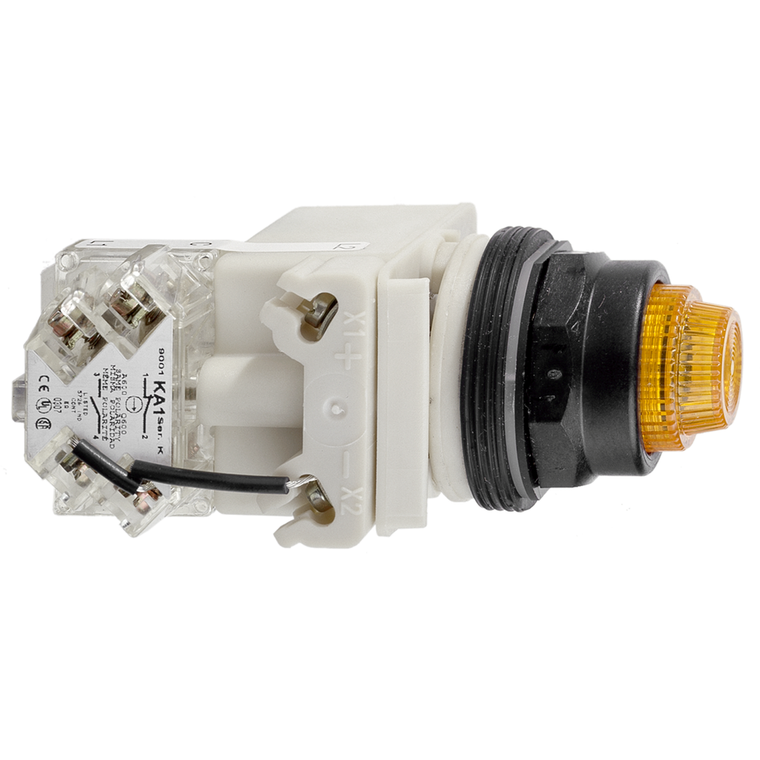

Schneider Electric 9001KT36LYA31 Pilot Light 120Vac 30Mm Type K +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 9001KT36LYA31 Pilot Light 120Vac 30Mm Type K +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KT36LYA31

UPC:

3.38912E+12

MPN:

Condition:

New

Range Of Product:

Harmony 9001K

Connections - Terminals:

screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Product Certifications:

NEMA || UL 508

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Bezel Material:

metal

Device Presentation:

complete product

Circularity Profile:

N/A

Type Of Operator:

spring return

Ip Degree Of Protection:

IP66 IEC 60529

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP121006EN

Light Source:

LED

Contacts Material:

silver alloy contacts

Lens Type:

fresnel

Mechanical Durability:

5000000 cycles

Ambient Air Temperature For Operation:

-25-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

Shape Of Screw Head:

cross slotted

Positive Opening:

without

Operating Position:

any position

[Icm] Rated Short-Circuit Making Capacity:

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13

Operator Profile:

amber projecting, unmarked

Net Weight:

0.235 kg

Cap/Operator Or Lens Colour:

amber

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contact Operation:

standard

Shape Of Signaling Unit Head:

octagonal

Mounting Diameter:

30 mm

Product Or Component Type:

push-to-test pilot light

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

Lens Material:

polycarbonate

Protective Treatment:

TC

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Shock Resistance:

50 gn IEC 60068-2-27

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Short-Circuit Protection:

10 A cartridge fuse IEC 60947-5-1

Bulb Base:

BA 9s

[Us] Rated Supply Voltage:

48 V AC/DC

Rated Breaking Capacity:

1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.27 kA 600 V DC-13 || 0.55 kA 250 V DC-13

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Light Block Supply:

direct

[Us] Rated Supply Voltage:

48 V

Contacts Type And Composition:

1 C/O

Tightening Torque:

0.8-0.8 N.m IEC 60947-1

Light Source Colour:

yellow

Device Short Name:

9001K

Size:

30 mm

Standards:

EN/IEC 60947-5-4 || JIS C 852 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Electrical Shock Protection Class:

class II IEC 61140

Datasheet:

View
