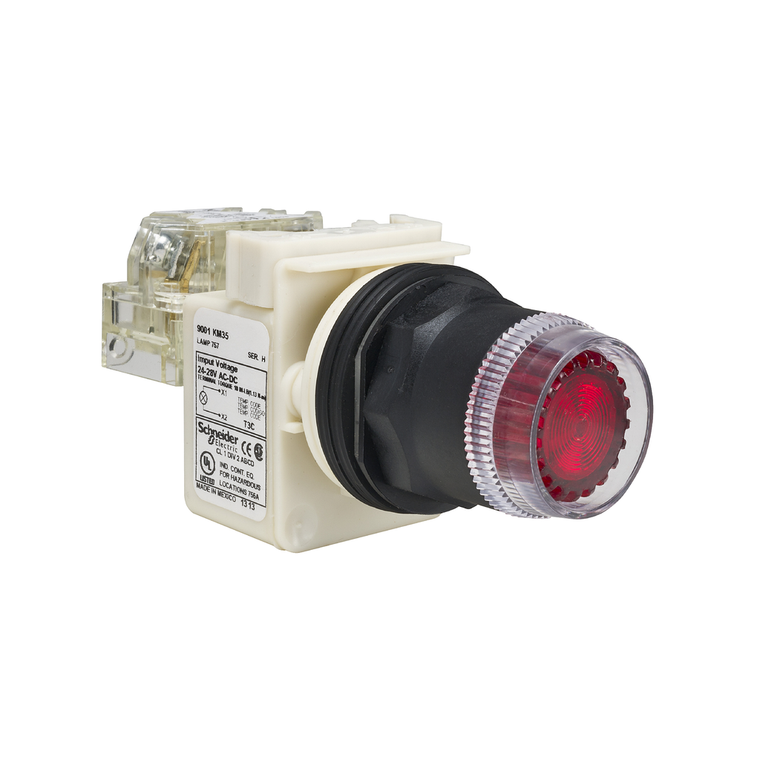

Schneider Electric 9001SK1L35RH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric 9001SK1L35RH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric
SKU:
9001SK1L35RH13
|
UPC:
785901040460
$198.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Additional Information
Net Weight:
0.181 kg
Circularity Profile:
N/A
Product Or Component Type:
illuminated push-button
Environmental Disclosure:
ENVPEP121005EN
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
Warranty:
18 months
Mounting Diameter:
30 mm
Light Block Supply:
full voltage
Contacts Type And Composition:
1 C/O
Mercury Free:
Yes
[Us] Rated Supply Voltage:
24...28 V AC/DC
Rated Breaking Capacity:
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Ambient Air Temperature For Storage:
-40-70 °C
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Standards:
CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C 852 || EN/IEC 60947-5-1 || JIS C 4520 || EN/IEC 60947-1
Operator Profile:
flush
Mechanical Durability:
5000000 cycles
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Light Source:
LED
Reach Free Of Svhc:
Yes
Shock Resistance:
50 gn IEC 60068-2-27
Bulb Base:
BA 9s
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Range Of Product:
Harmony 9001SK
[Icm] Rated Short-Circuit Making Capacity:
0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
Contact Operation:
standard
Ambient Air Temperature For Operation:
-25-70 °C
Operating Position:
any position
China Rohs Regulation:
X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Cap/Operator Or Lens Colour:
red
Operator Profile:
red flush
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Device Presentation:
complete product
Bezel Material:
plastic
Device Short Name:
9001SK
Contacts Material:
silver alloy contacts
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
24...28 V
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
[Ie] Rated Operational Current:
0.55 A 125 V, DC-13, A600-Q600 NEMA
Protective Treatment:
TC
Electrical Shock Protection Class:
class II IEC 61140
Product Certifications:
UL 508 || NEMA
Shape Of Screw Head:
cross slotted
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Connections - Terminals:
screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Operator Additional Information:
plastic guard
Light Block Supply:
direct
Toxic Heavy Metal Free:
Yes
Ip Degree Of Protection:
IP66 IEC 60529
Sustainable Offer Status:
Green Premium product
