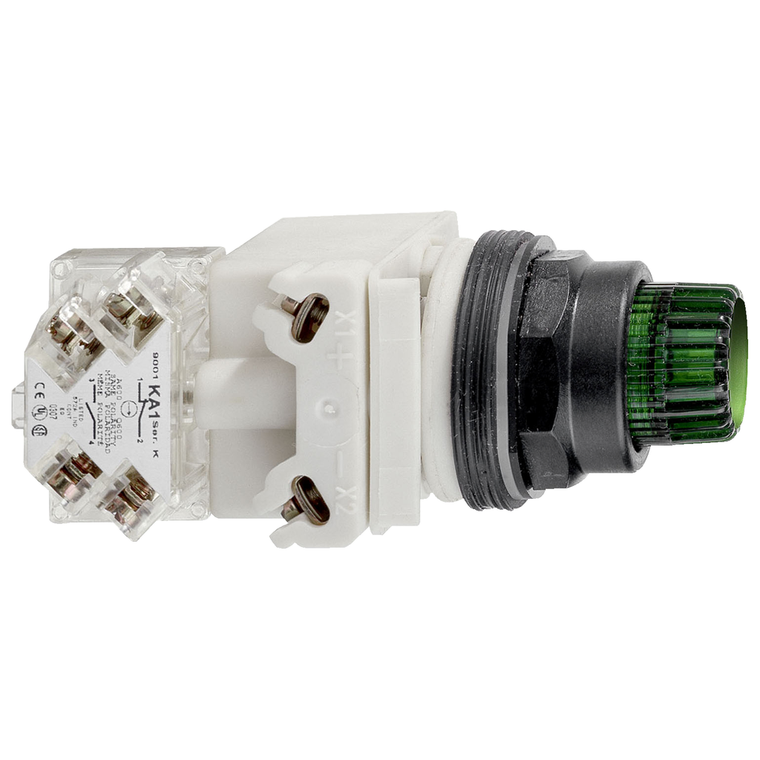

Schneider Electric 9001SK2L35GH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SK2L35GH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SK2L35GH13

UPC:

3389118038370

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Connections - Terminals:

screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Light Block Supply:

full voltage

Operator Additional Information:

without guard

Rated Breaking Capacity:

1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Cap/Operator Or Lens Colour:

green

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shape Of Signaling Unit Head:

octagonal

Device Short Name:

9001SK

Shock Resistance:

50 gn IEC 60068-2-27

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Contact Operation:

standard

China Rohs Regulation:

X

Electrical Shock Protection Class:

class II IEC 61140

Bezel Material:

plastic

Mercury Free:

Yes

Product Or Component Type:

illuminated push-button

Net Weight:

0.181 kg

Toxic Heavy Metal Free:

Yes

Light Block Supply:

direct 24 V AC/DC

Mounting Diameter:

30 mm

Standards:

EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 852 || JIS C 4520 || EN/IEC 60947-5-4

[Us] Rated Supply Voltage:

24...28 V

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Ambient Air Temperature For Operation:

-25-70 °C

Operator Profile:

green projecting, unmarked

Light Source:

incandescent

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP66 IEC 60529

Bulb Base:

BA 9s

Circularity Profile:

N/A

Contacts Type And Composition:

1 C/O

Environmental Disclosure:

ENVPEP121005EN

Contacts Material:

silver alloy contacts

Range Of Product:

Harmony 9001SK

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Warranty:

18 months

[Icm] Rated Short-Circuit Making Capacity:

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13

Device Presentation:

complete product

Positive Opening:

without

Ambient Air Temperature For Storage:

-40-70 °C

Mechanical Durability:

5000000 cycles

Protective Treatment:

TC

[Us] Rated Supply Voltage:

24...28 V AC/DC

Operator Profile:

projecting

Product Certifications:

UL 508 || NEMA

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Shape Of Screw Head:

cross slotted

Operating Position:

any position

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1
