Schneider Electric 9001SK2L38LGGH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric 9001SK2L38LGGH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric
SKU:
9001SK2L38LGGH13
|
UPC:
7.85902E+11
$217.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

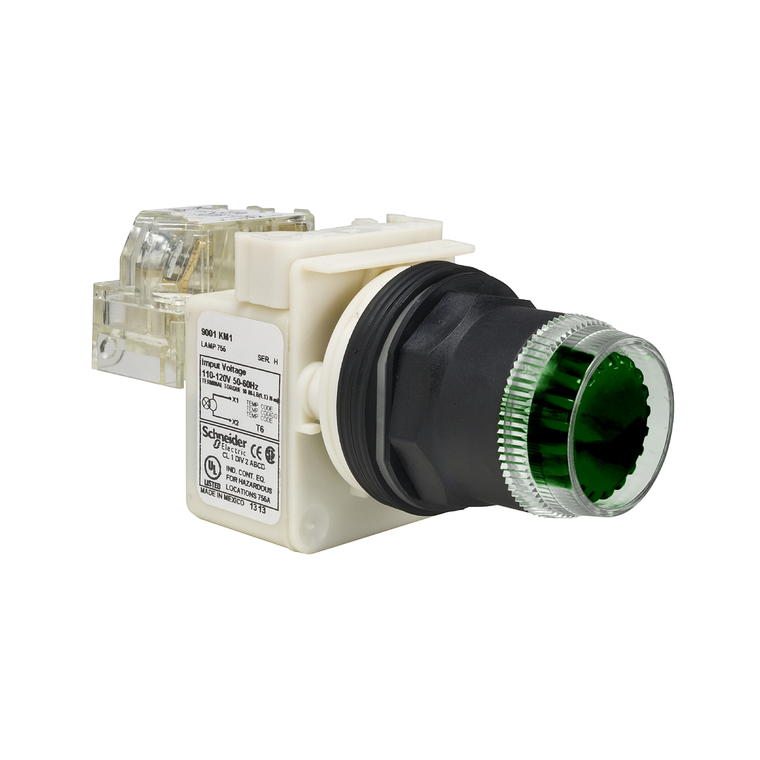

This Harmony 9001SK, modular illuminated flush green push button is supplied with contact block. It has a double insulated plastic bezel, is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Additional Information
Product Or Component Type:
illuminated push-button
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type of Operator:
spring return
Operator Profile:
green projecting
Ambient Air Temperature For Storage:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Light Block Supply:
direct
Ip Degree Of Protection:
IP66 IEC 60529
Light Source:
LED
Mercury Free:
Yes
Operator Profile:
projecting
Bezel Material:
plastic
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Connections - Terminals:
screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Device Presentation:
complete product
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Cap/Operator Or Lens Colour:
green
Contacts Material:
silver alloy contacts
Electrical Shock Protection Class:
class II IEC 61140
Operating Position:
any position
Device Short Name:
9001SK
Rohs Exemption Information:
Yes
[Ie] Rated Operational Current:
0.55 A 125 V, DC-13, A600-Q600 NEMA
Bulb Base:
BA 9s
[Icm] Rated Short-Circuit Making Capacity:
0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
Operator Additional Information:
without guard
Standards:
UL 508 || CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1
Circularity Profile:
N/A
Shock Resistance:
50 gn IEC 60068-2-27
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
Protective Treatment:
TC
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Range Of Product:
Harmony 9001SK
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
[Us] Rated Supply Voltage:
120 V
Light Source Colour:
green
Contacts Type And Composition:
1 C/O
Net Weight:
0.181 kg
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Mounting Diameter:
30 mm
Mechanical Durability:
5000000 cycles
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
-25-70 °C
Contact Operation:
standard
Environmental Disclosure:
ENVPEP121005EN
[Us] Rated Supply Voltage:
120 V AC/DC
Rated Breaking Capacity:
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
Reach Free Of Svhc:
Yes
Product Certifications:
NEMA || UL 508
Shape Of Screw Head:
cross slotted
Datasheet:
View
