Schneider Electric 9001SK2L38LRRH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric 9001SK2L38LRRH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric
SKU:
9001SK2L38LRRH13
|
UPC:
7.85902E+11
$217.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

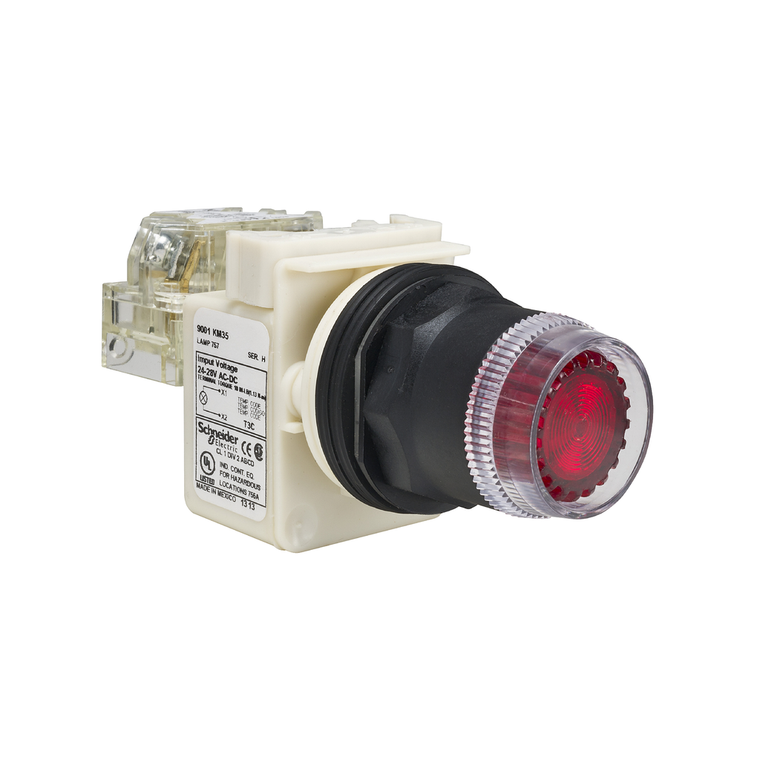

This Harmony 9001SK, modular illuminated flush red push button is supplied with contact block. It has a double insulated plastic bezel, is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Additional Information
Bulb Base:
BA 9s
China Rohs Regulation:
X
Type of Operator:
spring return
Product Or Component Type:
illuminated push-button
Light Block Supply:
direct
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Standards:
EN/IEC 60947-1 || JIS C 852 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C 4520
Contacts Material:
silver alloy contacts
Shape Of Screw Head:
cross slotted
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shock Resistance:
50 gn IEC 60068-2-27
[Ie] Rated Operational Current:
0.55 A 125 V, DC-13, A600-Q600 NEMA
Rated Breaking Capacity:
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
9001SK
Light Source Colour:
red
[Us] Rated Supply Voltage:
120 V AC/DC
Warranty:
18 months
[Us] Rated Supply Voltage:
120 V
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP121005EN
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Presentation:
complete product
Reach Free Of Svhc:
Yes
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Operator Additional Information:
without guard
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Ambient Air Temperature For Operation:
-25-70 °C
Operator Profile:
red projecting
Light Source:
LED
Mounting Diameter:
30 mm
Mercury Free:
Yes
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Bezel Material:
plastic
Connections - Terminals:
screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Net Weight:
0.181 kg
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Toxic Heavy Metal Free:
Yes
Operator Profile:
projecting
Electrical Shock Protection Class:
class II IEC 61140
Circularity Profile:
N/A
Operating Position:
any position
Contact Operation:
standard
Product Certifications:
UL 508 || NEMA
Sustainable Offer Status:
Green Premium product
Mechanical Durability:
5000000 cycles
[Icm] Rated Short-Circuit Making Capacity:
0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
Ip Degree Of Protection:
IP66 IEC 60529
Protective Treatment:
TC
Contacts Type And Composition:
1 C/O
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
Cap/Operator Or Lens Colour:
red
Range Of Product:
Harmony 9001SK
