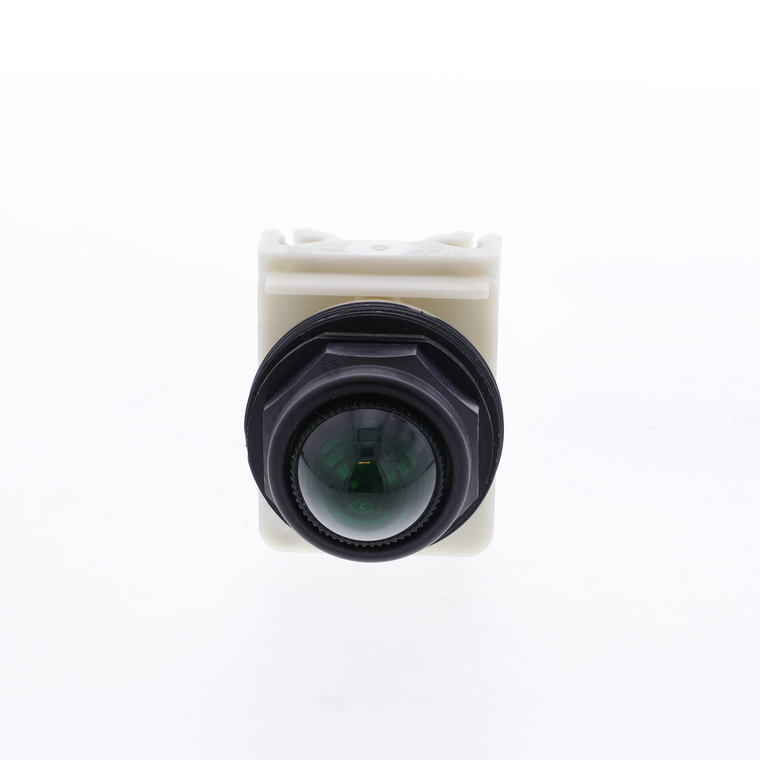

Schneider Electric 9001SKP1G9 Pilot Light 120Vac 30Mm Sk +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SKP1G9 Pilot Light 120Vac 30Mm Sk +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKP1G9

UPC:

3389118037687

MPN:

Condition:

New

Light Source:

incandescent

Ambient Air Temperature For Operation:

-25-70 °C

Device Short Name:

9001SK

Light Block Supply:

via integral transformer 120 V AC 50/60 Hz 6 V)

Warranty:

18 months

Lens Material:

polycarbonate

Light Source:

incandescent bulb

Ip Degree Of Protection:

IP66 IEC 60529

Toxic Heavy Metal Free:

Yes

Range Of Product:

Harmony 9001SK

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

Reach Free Of Svhc:

Yes

Net Weight:

0.181 kg

Lens Type:

domed

Cap/Operator Or Lens Colour:

green

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Presentation:

complete product

Bulb Base:

BA 9s

Shape Of Screw Head:

cross slotted

Mercury Free:

Yes

Mounting Diameter:

30 mm

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Light Block Supply:

via integral transformer

Rohs Exemption Information:

Yes

Standards:

JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1

Circularity Profile:

ENVEOLI1710019EN

Cad Overall Height:

70 mm

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Size:

30 mm

[Us] Rated Supply Voltage:

110...120 V

China Rohs Regulation:

X

Product Or Component Type:

pilot light

Product Certifications:

UL 508 || NEMA

Cad Overall Width:

54 mm

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Sustainable Offer Status:

Green Premium product

Operating Position:

any position

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1710019EN

Ambient Air Temperature For Storage:

-40-70 °C

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Lens Type:

domed plastic

Protective Treatment:

TC

Electrical Shock Protection Class:

class II IEC 61140

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Supply Frequency:

50...60 Hz

Shape Of Signaling Unit Head:

round

Bezel Material:

plastic

Cad Overall Depth:

42 mm

Shock Resistance:

50 gn IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Brochure:

View

Datasheet:

View
