Schneider Electric 9001SKP32G9 Pilot Light 14V 30Mm Sk +Options

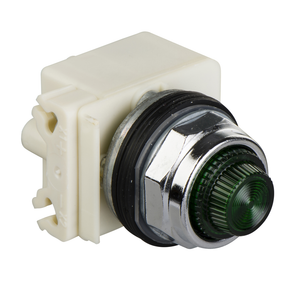

This Harmony 9001SK, green pilot light with plastic dome is supplied with 12V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Net Weight:
- 0.082 kg
- Light Source:
- incandescent bulb
- Standards:
- UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 852 || JIS C8201-1
- Cap/Operator Or Lens Colour:
- green
- Cad Overall Depth:
- 42 mm
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1710019EN
- Reach Free Of Svhc:
- Yes
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Product Certifications:
- NEMA || UL 508
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Warranty:
- 18 months
- Device Presentation:
- complete product
- Lens Type:
- domed
- Light Block Supply:
- full voltage
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- 9001SK
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- [Us] Rated Supply Voltage:
- 12...14 V AC/DC
- China Rohs Regulation:
- X
- Electrical Shock Protection Class:
- class II IEC 61140
- Range Of Product:
- Harmony 9001SK
- Lens Material:
- polycarbonate
- Ip Degree Of Protection:
- IP66 IEC 60529
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Bezel Material:
- plastic
- Light Source:
- incandescent
- Mounting Diameter:
- 30 mm
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Operating Position:
- any position
- Cad Overall Height:
- 70 mm
- Circularity Profile:
- ENVEOLI1710019EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Block Supply:
- direct 12 V AC/DC
- Size:
- 30 mm
- Shape Of Screw Head:
- cross slotted
- Shape Of Signaling Unit Head:
- round
- [Us] Rated Supply Voltage:
- 12...14 V
- Product Or Component Type:
- pilot light
- Cad Overall Width:
- 54 mm
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Bulb Base:
- BA 9s
- Protective Treatment:
- TC
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Lens Type:
- domed plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
