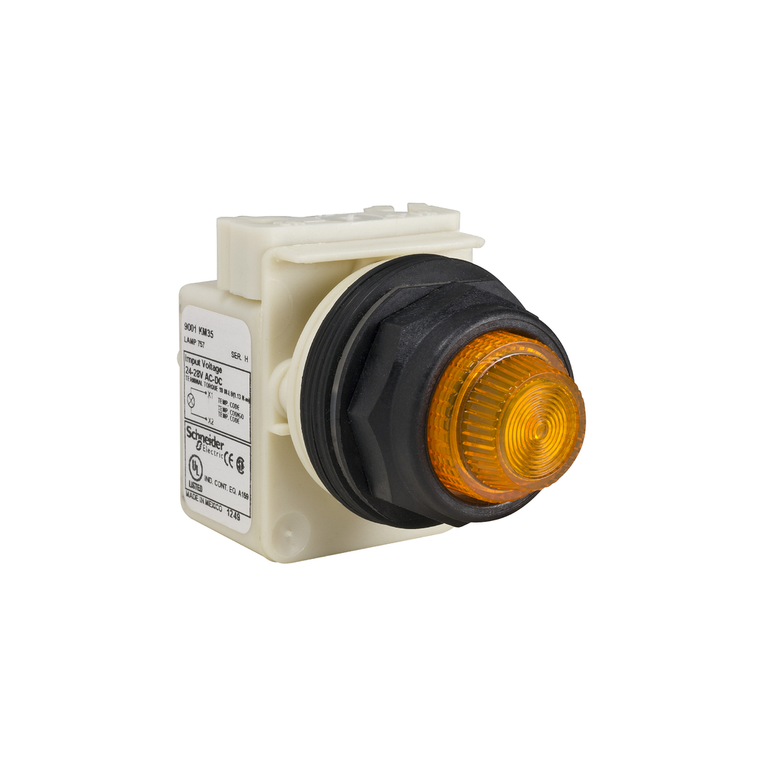

Schneider Electric 9001SKP35LYA31 Pilot Light 28V 30Mm Sk +Options
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This standard pilot light has a plastic ring nut. This pilot light has a 24/28 VAC/VDC LED light module to provide the illumination. The light module has a yellow LED lamp. This operator is supplied with a amber plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by NEMA and UL 508. It meets JIS C8201-5-1, EN/IEC 60947-5-4, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1 and JIS C8201-1 standards." "It is installed into a 30mm panel cutout." "The modular range of 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Device Short Name:
- 9001SK
- Cap/Operator Or Lens Colour:
- amber
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Light Source:
- Yellow LED
- Lens Material:
- polycarbonate
- Operating Position:
- any position
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Protective Treatment:
- TC
- Circularity Profile:
- ENVEOLI1710019EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Shape Of Screw Head:
- cross slotted
- Cad Overall Depth:
- 42 mm
- Light Source:
- LED
- [Us] Rated Supply Voltage:
- 24...28 V AC/DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Lens Type:
- fresnel
- China Rohs Regulation:
- X
- Mounting Diameter:
- 30 mm
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Bulb Base:
- BA 9s
- Bezel Material:
- plastic
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Range Of Product:
- Harmony 9001SK
- Lens Type:
- fresnel plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- [Us] Rated Supply Voltage:
- 24...28 V
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Cad Overall Height:
- 70 mm
- Light Source Colour:
- yellow
- Ambient Air Temperature For Operation:
- -25-70 °C
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL 508 || NEMA
- Cad Overall Width:
- 54 mm
- Product Or Component Type:
- pilot light
- Light Block Supply:
- direct 24...28 V AC/DC
- Environmental Disclosure:
- ENVPEP1710019EN
- Electrical Shock Protection Class:
- class II IEC 61140
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529
- Shape Of Signaling Unit Head:
- round
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- JIS C 852 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Net Weight:
- 0.181 kg
- Reach Free Of Svhc:
- Yes
- Size:
- 30 mm
