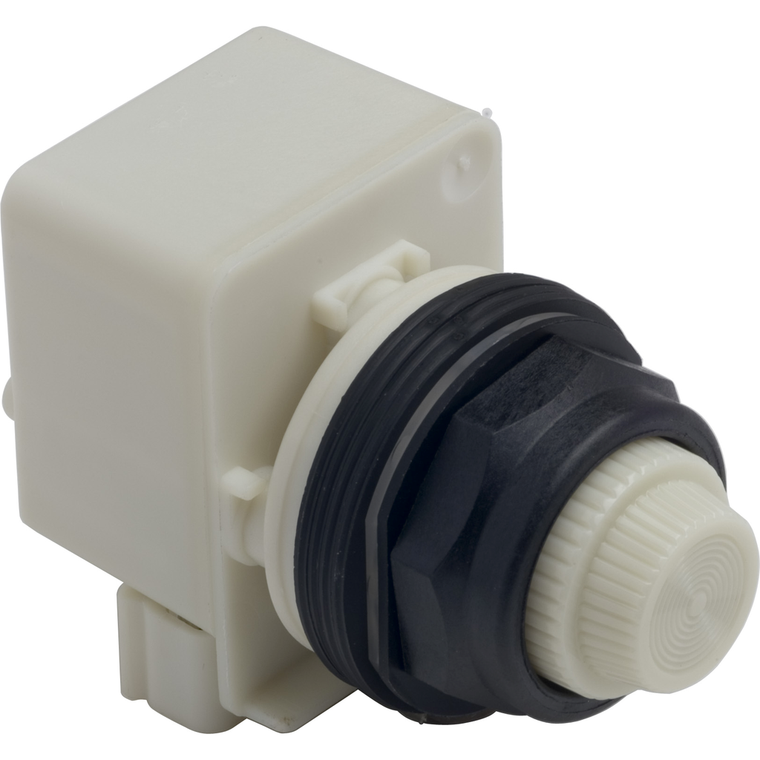

Schneider Electric 9001SKP35W31 Pilot Light 28V 30Mm Sk +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SKP35W31 Pilot Light 28V 30Mm Sk +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKP35W31

UPC:

7.85901E+11

MPN:

Condition:

New

Device Short Name:

9001SK

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Light Block Supply:

direct 24...28 V AC/DC

Product Certifications:

NEMA || UL 508

Operating Position:

any position

[Us] Rated Supply Voltage:

24...28 V AC/DC

Reach Free Of Svhc:

Yes

Electrical Shock Protection Class:

class II IEC 61140

Size:

30 mm

Light Block Supply:

full voltage

Lens Type:

fresnel plastic

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Bezel Material:

plastic

Standards:

JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || JIS C8201-1

Shape Of Signaling Unit Head:

round

Lens Type:

fresnel

Cad Overall Depth:

42 mm

Warranty:

18 months

Ip Degree Of Protection:

IP66 IEC 60529

Toxic Heavy Metal Free:

Yes

[Us] Rated Supply Voltage:

24...28 V

Cad Overall Width:

54 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Cad Overall Height:

70 mm

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Ambient Air Temperature For Operation:

-25-70 °C

Product Or Component Type:

pilot light

Bulb Base:

BA 9s

Rohs Exemption Information:

Yes

Light Source:

incandescent

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Presentation:

complete product

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Mounting Diameter:

30 mm

Lens Material:

polycarbonate

Range Of Product:

Harmony 9001SK

Net Weight:

0.181 kg

Protective Treatment:

TC

Shock Resistance:

50 gn IEC 60068-2-27

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Shape Of Screw Head:

cross slotted

Light Source:

incandescent bulb

Circularity Profile:

ENVEOLI1710019EN

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Mercury Free:

Yes

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Cap/Operator Or Lens Colour:

white

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

Environmental Disclosure:

ENVPEP1710019EN
