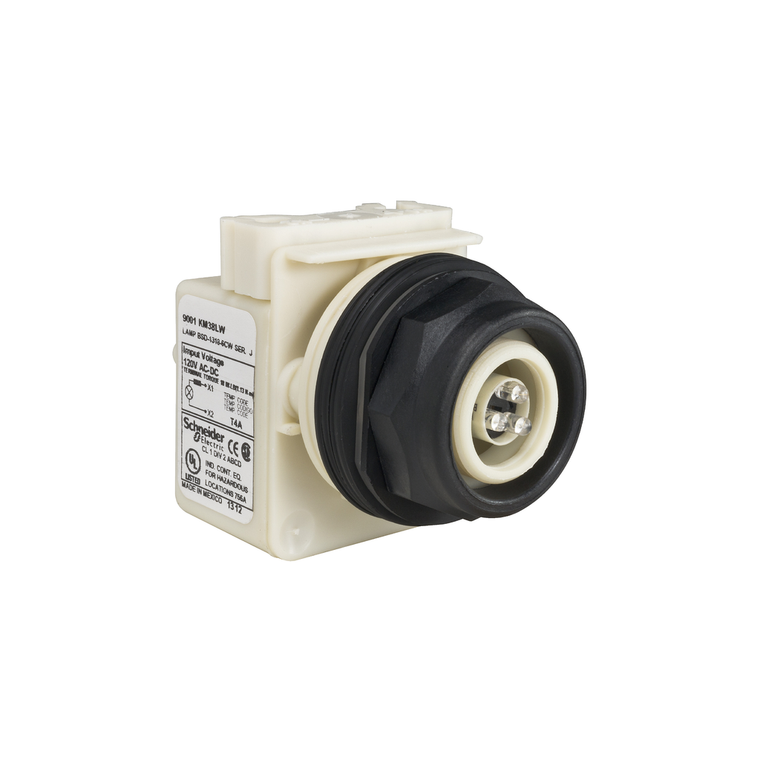

Schneider Electric 9001SKP38LW Pilot Light 120V 30Mm Sk + Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 9001SKP38LW Pilot Light 120V 30Mm Sk + Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKP38LW

UPC:

785901791003

MPN:

Condition:

New

Reach Free Of Svhc:

Yes

Sustainable Offer Status:

Green Premium product

Light Source:

LED

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Bezel Material:

plastic

Cap/Operator Or Lens Colour:

without cap

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circularity Profile:

ENVEOLI1710019EN

Rohs Exemption Information:

Yes

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Bulb Base:

BA 9s

Light Block Supply:

direct 120 V AC/DC

Shock Resistance:

50 gn IEC 60068-2-27

[Us] Rated Supply Voltage:

120 V AC/DC

Environmental Disclosure:

ENVPEP1710019EN

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Product Or Component Type:

head for pilot light

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Light Source Colour:

white

Mercury Free:

Yes

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Shape Of Signaling Unit Head:

round

Size:

30 mm

Device Short Name:

9001SK

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

Operating Position:

any position

Toxic Heavy Metal Free:

Yes

Cad Overall Depth:

42 mm

Ip Degree Of Protection:

IP66 IEC 60529

Light Source:

White LED

Warranty:

18 months

Standards:

EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C 852 || EN/IEC 60947-5-4 || JIS C8201-1

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

[Us] Rated Supply Voltage:

120 V

Cad Overall Height:

70 mm

Mounting Diameter:

30 mm

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-40-70 °C

Shape Of Screw Head:

cross slotted

Range Of Product:

Harmony 9001SK

Product Certifications:

UL 508 || NEMA

Ambient Air Temperature For Operation:

-25-70 °C

Electrical Shock Protection Class:

class II IEC 61140

Cad Overall Width:

54 mm

Protective Treatment:

TC

Net Weight:

0.181 kg
