Schneider Electric 9001SKP7R9 Pilot Light 240Vac 30Mm Sk +Options

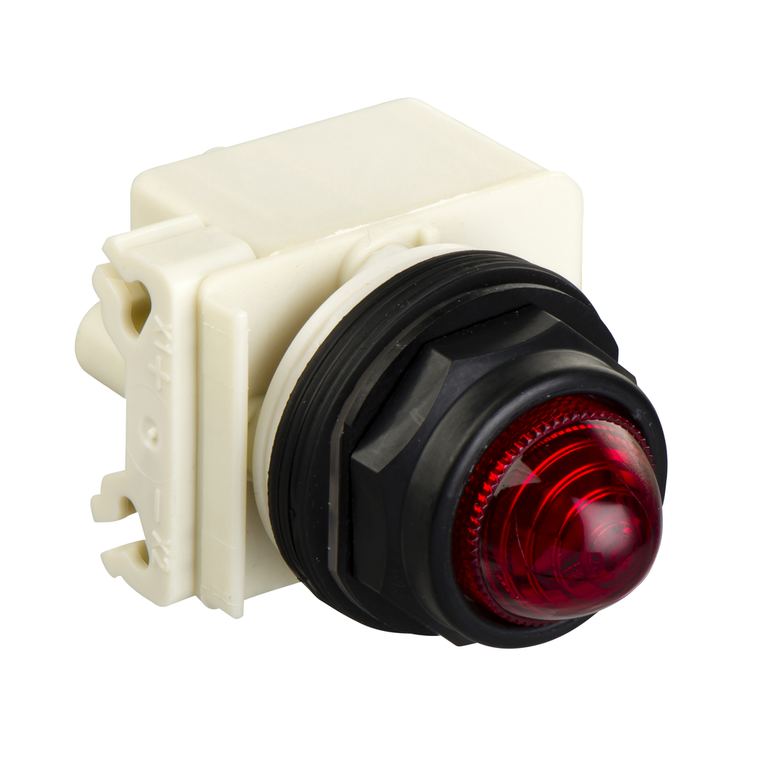

This Harmony 9001SK, red pilot light with transformer and plastic dome is supplied with 240V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Mounting Diameter:
- 30 mm
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Device Presentation:
- complete product
- Lens Material:
- polycarbonate
- Operating Position:
- any position
- Standards:
- JIS C 852 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529
- Mercury Free:
- Yes
- Bulb Base:
- BA 9s
- [Us] Rated Supply Voltage:
- 220...240 V
- [Us] Rated Supply Voltage:
- 220...240 V AC 50/60 Hz
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1710019EN
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1710019EN
- Electrical Shock Protection Class:
- class II IEC 61140
- Protective Treatment:
- TC
- Warranty:
- 18 months
- Lens Type:
- domed plastic
- Net Weight:
- 0.181 kg
- Product Certifications:
- NEMA || UL 508
- Cad Overall Height:
- 70 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Device Short Name:
- 9001SK
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Free Of Svhc:
- Yes
- Lens Type:
- domed
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Block Supply:
- via integral transformer 230 V AC 50/60 Hz 6 V)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Supply Frequency:
- 50...60 Hz
- Range Of Product:
- Harmony 9001SK
- Cad Overall Depth:
- 42 mm
- Light Source:
- incandescent
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Bezel Material:
- plastic
- Light Source:
- incandescent bulb
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Shape Of Screw Head:
- cross slotted
- Light Block Supply:
- via integral transformer
- Product Or Component Type:
- pilot light
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Size:
- 30 mm
- Cap/Operator Or Lens Colour:
- red
- Cad Overall Width:
- 54 mm
