Schneider Electric

Schneider Electric 9001SKR24GH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

(No reviews yet) Write a Review
SKU:
9001SKR24GH13
UPC:
785901287483
Condition:
New
Mounting Diameter:
30 mm
Product Or Component Type:
push-button
Mercury Free:
Yes
Device Short Name:
9001SK
Operator Profile:
mushroom Ø 35 mm
Contacts Type And Composition:
1 C/O
Cap/Operator Or Lens Colour:
green
Bezel Material:
plastic
Standards:
UL 508 || JIS C 852 || JIS C 4520 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Operator Additional Information:
screw-on plastic with set screw
Toxic Heavy Metal Free:
Yes
Size:
30 mm
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operator Profile:
green mushroom Ø 35 mm
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Environmental Disclosure:
EnvPEP120817EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mechanical Durability:
5000000 cycles
Device Presentation:
complete product
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Contact Operation:
standard
Ip Degree Of Protection:
IP66
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Range Of Product:
Harmony 9001SK
Warranty:
18 months
Brochure:
View
Catalog:
View
Datasheet:
View
$207.00

Description

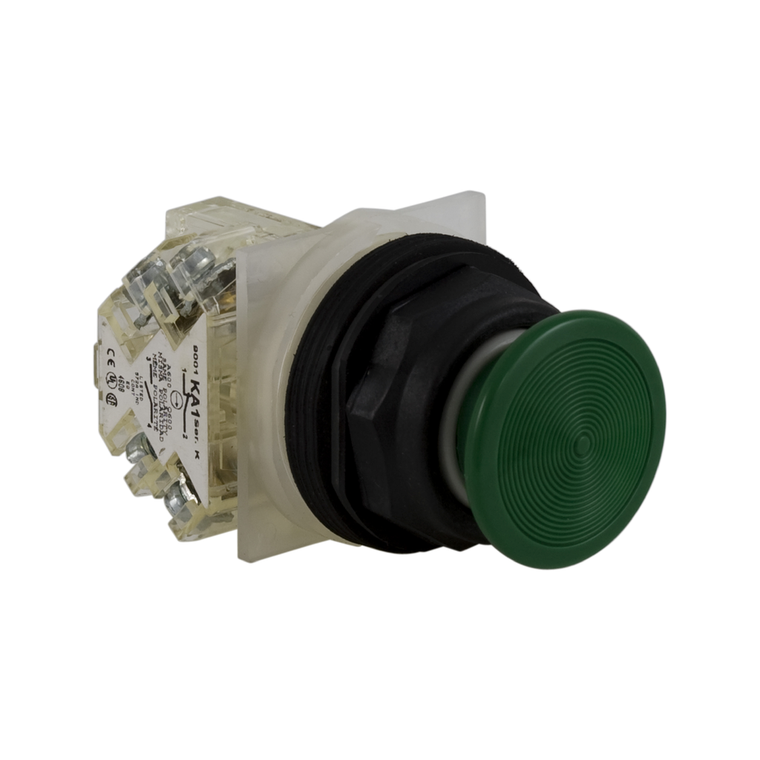

This Harmony 9001SK, modular green push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
