Schneider Electric

Schneider Electric 9001SKR24RH6 Pushbutton 600Vac 10Amp 30Mm Sk +Options

(No reviews yet) Write a Review
SKU:
9001SKR24RH6
UPC:
7.85901E+11
Condition:
New
Contact Operation:
standard
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Operator Profile:
mushroom Ø 35 mm
Ip Degree Of Protection:
IP66
Type Of Operator:
spring return
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Size:
30 mm
Rohs Exemption Information:
Yes
Operator Additional Information:
screw-on plastic with set screw
Warranty:
18 months
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
push-button
Operator Profile:
red mushroom Ø 35 mm
Mercury Free:
Yes
Range Of Product:
Harmony 9001SK
Device Short Name:
9001SK
Mounting Diameter:
30 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Type And Composition:
1 NC
Circularity Profile:
N/A
Mechanical Durability:
5000000 cycles
Standards:
EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || JIS C 4520 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1
Bezel Material:
plastic
Cap/Operator Or Lens Colour:
red
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Environmental Disclosure:
EnvPEP120817EN
Device Presentation:
complete product
Brochure:
View
Catalog:
View
Datasheet:
View
$168.00

Description

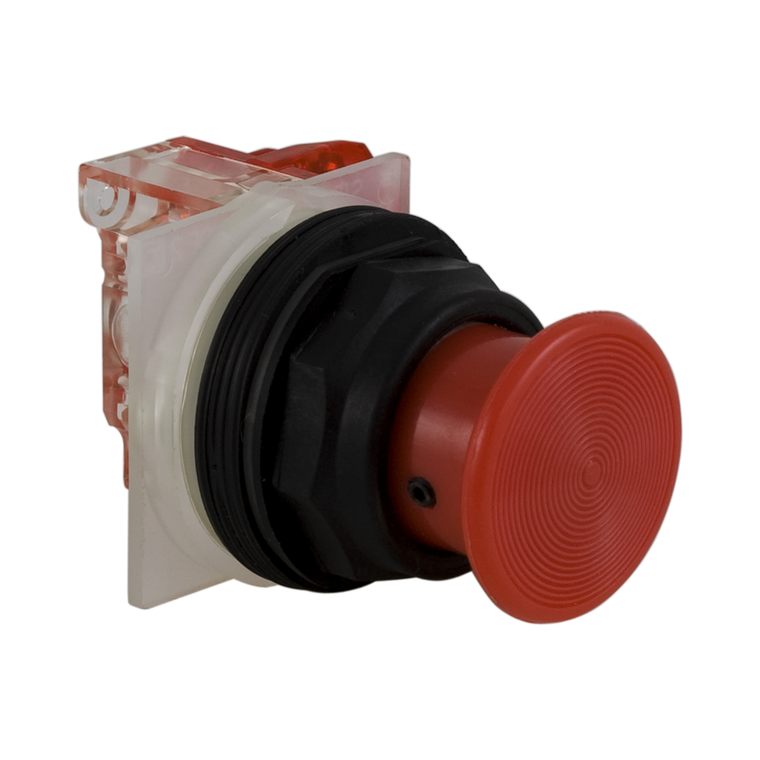

This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 35mm mushroom head and 1 x NC contact. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
