Schneider Electric 9001SKR25BH5 Pushbutton 600Vac 10Amp 30Mm Sk +Options

(No reviews yet) Write a Review
SKU:
9001SKR25BH5
UPC:
785901042372
Condition:
New
Mercury Free:
Yes
Toxic Heavy Metal Free:
Yes
Product Or Component Type:
push-button
Ip Degree Of Protection:
IP66
Range Of Product:
Harmony 9001SK
Operator Profile:
mushroom Ø 57 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Operator Profile:
black mushroom Ø 57 mm
Operator Additional Information:
screw-on plastic with set screw
Device Presentation:
complete product
Bezel Material:
plastic
Mounting Diameter:
30 mm
Environmental Disclosure:
EnvPEP120817EN
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Warranty:
18 months
Standards:
JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || JIS C 852 || EN/IEC 60947-1
Contacts Type And Composition:
1 NO
Mechanical Durability:
5000000 cycles
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Cap/Operator Or Lens Colour:
black
Circularity Profile:
N/A
Contact Operation:
standard
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Size:
30 mm
Device Short Name:
9001SK
Brochure:
View
Catalog:
View
Datasheet:
View
$168.00

Description

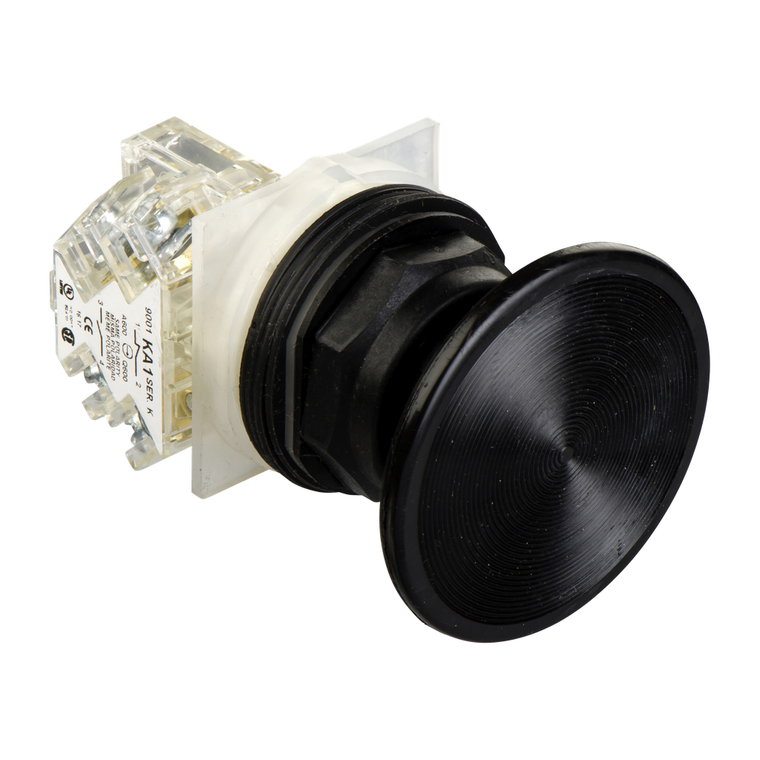

This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 57mm mushroom head and 1 x NO contact. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
